Pickup 2WD L4-155 2555cc 2.6L SOHC VIN E 2-bbl (1988)
Counter Gear Lock Nut
The dimensions of the counter gear lock nut have been changed as shown in Figure 2 below. Please note that the tightening torque of the lock nut has not
changed.
FIGURE 3

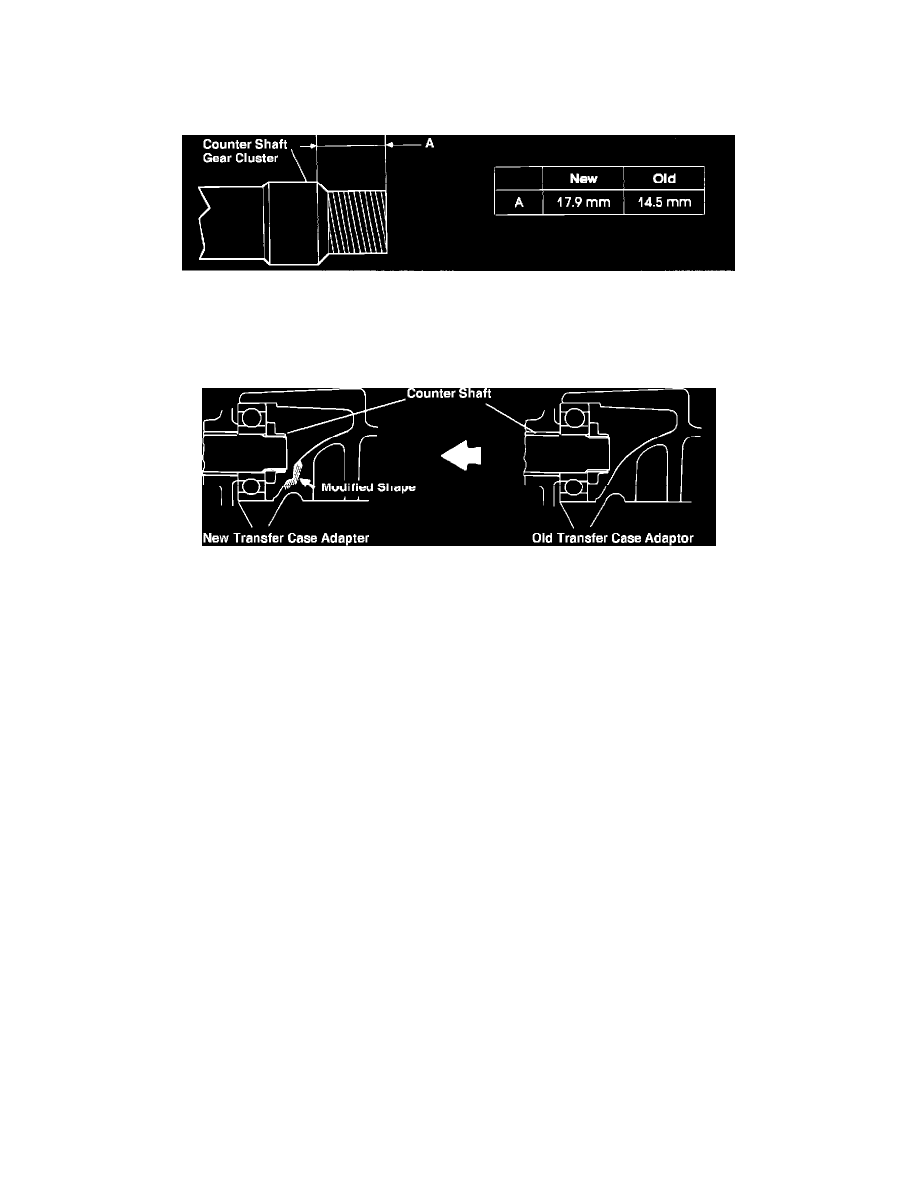

Counter Shaft Gear Cluster
The threaded end of the counter shaft gear cluster has been made longer as shown in Figure 3 below.
FIGURE 4
Transfer Case Adaptor (KM145 Only)
Because the overall length of the counter shaft has been increased, the shape inside the transfer case adaptor of the KM145 transmission has been
changed in order to clear the counter shaft as shown in Figure 4 below.
