Timing Component Alignment Marks: Locations
- Make
- Nissan and Datsun
- Model
- 350Z
- Engine
- V6-3.5L (VQ35DE)
- Year
- 2006
- Section
- Timing Component Alignment Marks › Locations
MaintenanceLocations

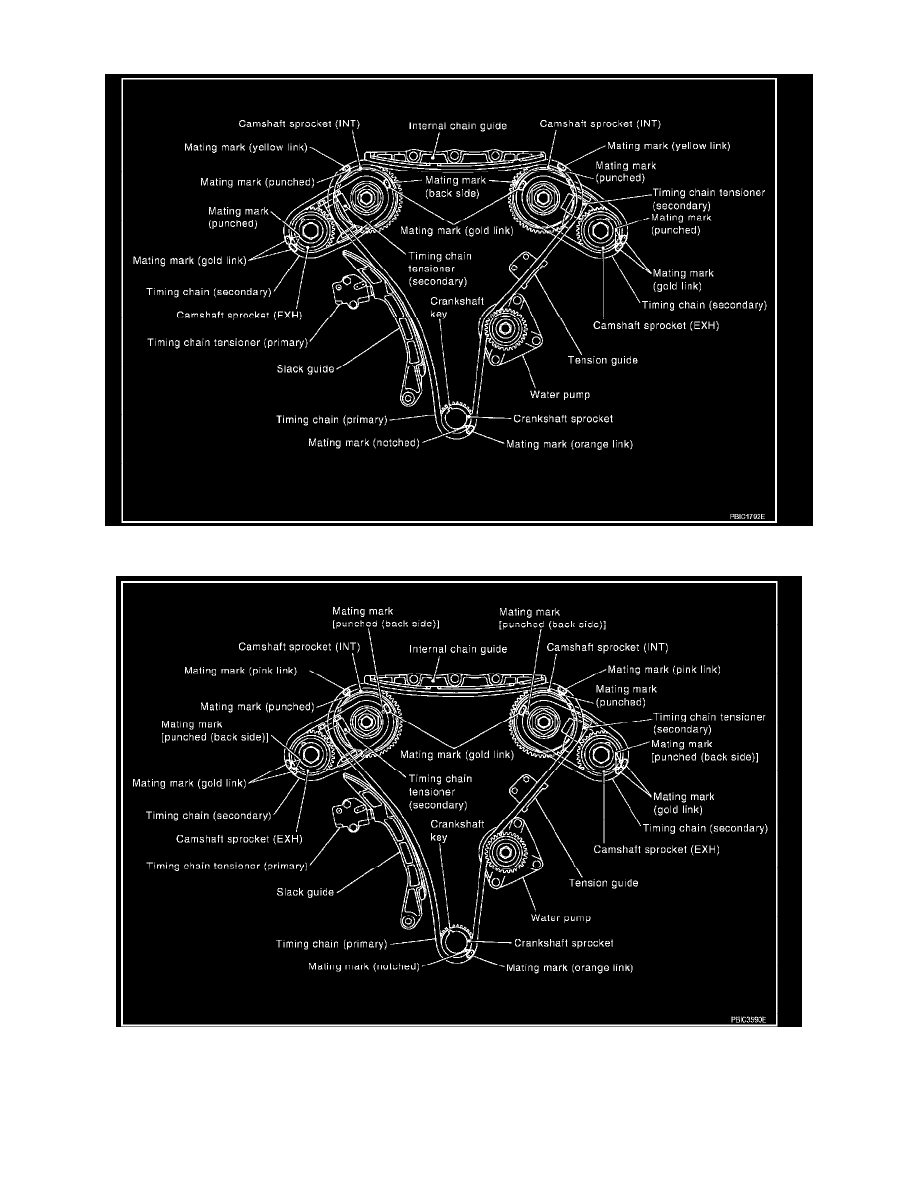

Timing Component Alignment Marks: Locations – diagram from the Maintenance chapter of the Nissan 350Z V6-3.5L (VQ35DE) (2006) factory manual.
/Page-415001.png)
Timing Component Alignment Marks: Locations
Automatic Transmission
Manual Transmission
