Grille: Service and Repair

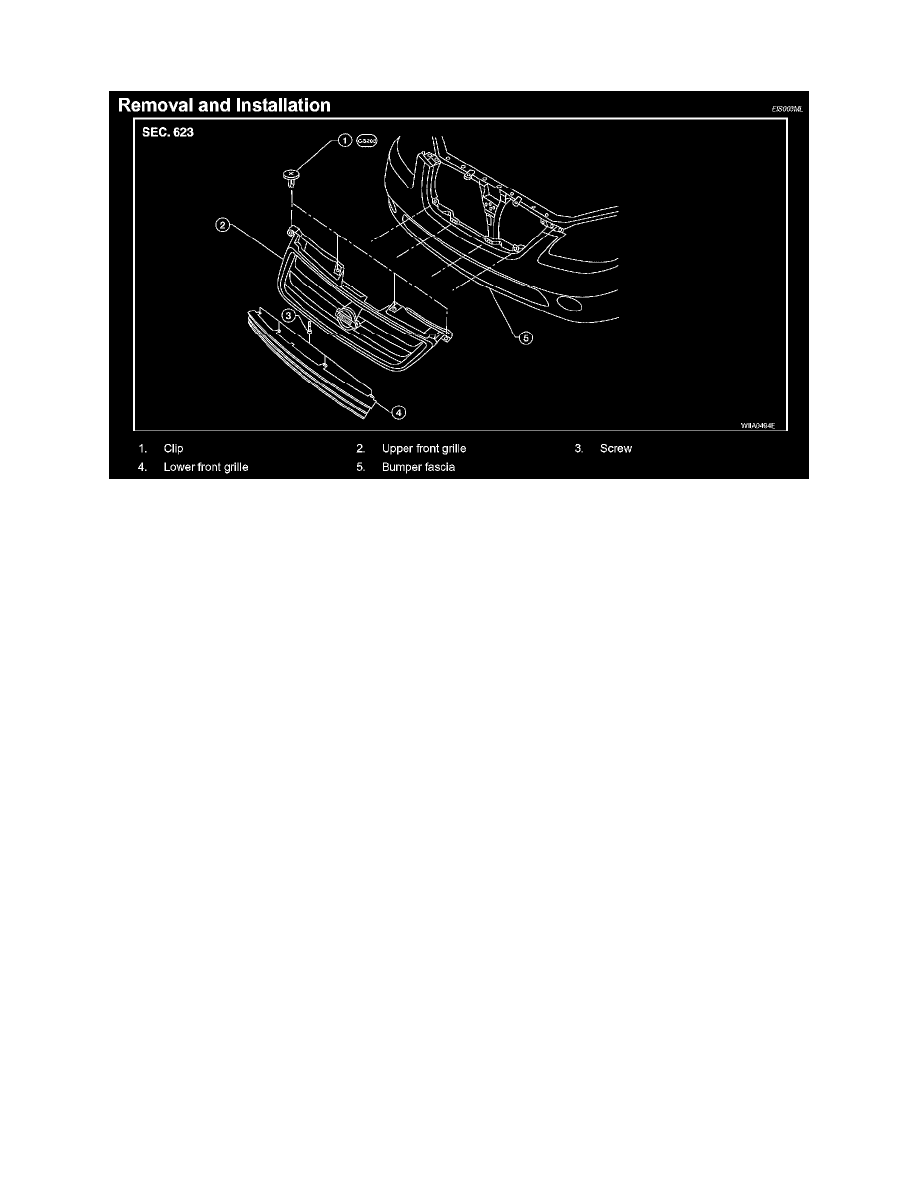

FRONT GRILLE
Removal and Installation
UPPER FRONT GRILLE
Removal
1. Remove the upper clips.
2. Release the lower tabs from the bumper fascia, then remove the upper front grille.
Installation
Installation is in the reverse order of removal.
LOWER FRONT GRILLE
Removal
1. Remove engine under cover.
2. Remove the upper screws.
3. Release the lower tabs from the bumper fascia, then remove the lower front grille.
Installation
Installation is in the reverse order of removal.
