Alignment: Specifications

Front

GENERAL SPECIFICATIONS

Minimum .....................................................................................................................................................................................................  -0°50' (-0.83°)
Nominal .......................................................................................................................................................................................................  -0°05' (-0.08°)
Maximum ..................................................................................................................................................................................................  +0°40' (+0.67°)
Left And Right Difference .................................................................................................................................................................  +45' (+0.75°) or less

Rear

GENERAL SPECIFICATIONS

Minimum .....................................................................................................................................................................................................  -2°00' (-2.00°)
Nominal .......................................................................................................................................................................................................  -1°15' (-1.25°)
Maximum ....................................................................................................................................................................................................  -0°30' (-0.50°)

Caster

GENERAL SPECIFICATIONS

Minimum ..................................................................................................................................................................................................  +1° 55' (+1.92°)
Nominal ....................................................................................................................................................................................................  +2° 40' (+2.67°)
Maximum .................................................................................................................................................................................................  +3° 25' (+3.42°)
Left And Right Difference .................................................................................................................................................................  +45' (+0.75°) or less

King Pin Inclination

GENERAL SPECIFICATIONS

Minimum ..............................................................................................................................................................................................  +13° 20' (+13.33°)
Nominal ................................................................................................................................................................................................  +14° 05' (+14.08°)
Maximum .............................................................................................................................................................................................  +14° 50' (+14.83°)

Front

GENERAL SPECIFICATIONS

Angle (Left + Right)

Minimum:  0' (0.00°)
Nominal:  6' (0.10°)
Maximum:  12' (0.20°)

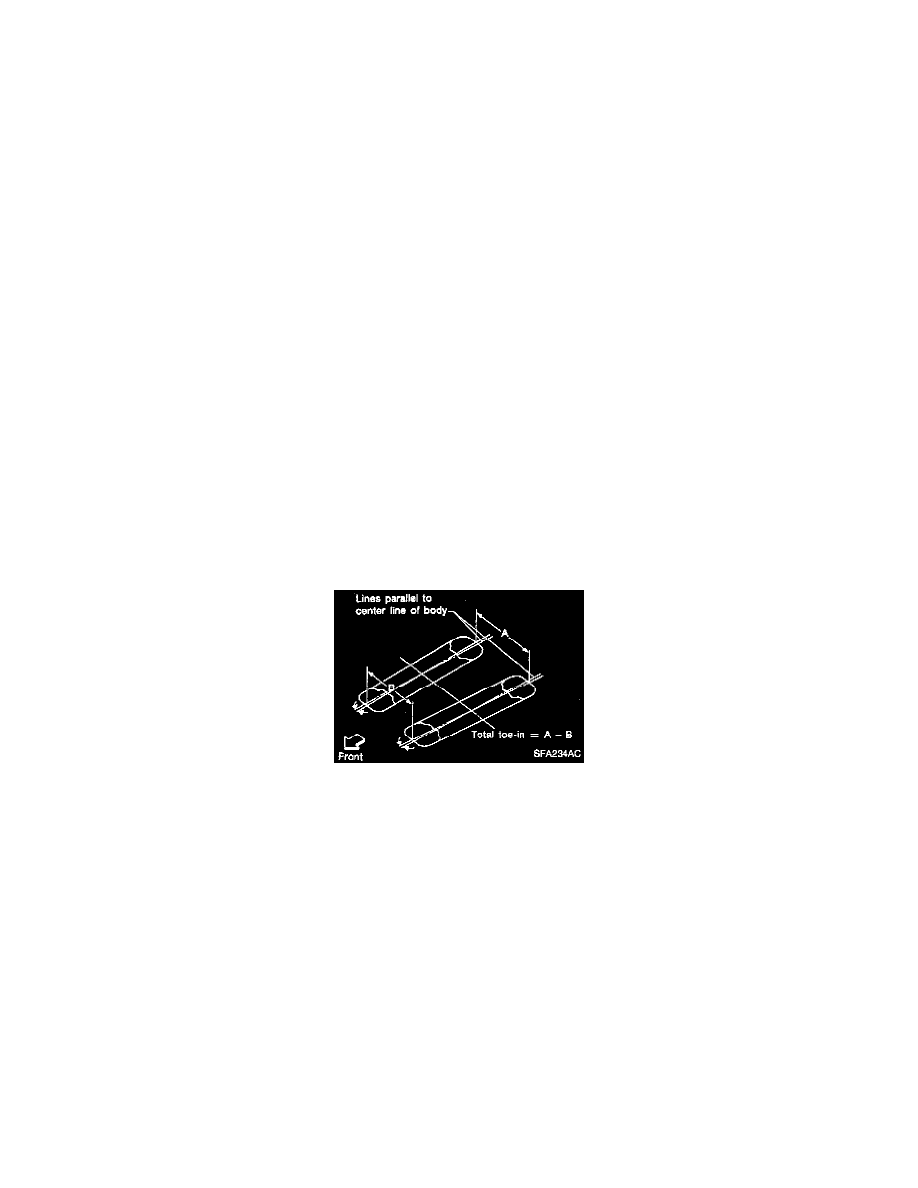

Distance (A - B)

Minimum:  0 mm (0.00 inch)
Nominal:  1 mm (0.04 inch)
Maximum:  2 mm (0.08 inch)

Rear
