Drive Belt > < Clearance Specifications|Page 1628

Altima SE L4-2.4L (KA24DE) (1997)

  • Maintenance
  • Timing Component Alignment Marks
  • Component Information
  • Locations

Page 1
background image

Timing Component Alignment Marks: Locations

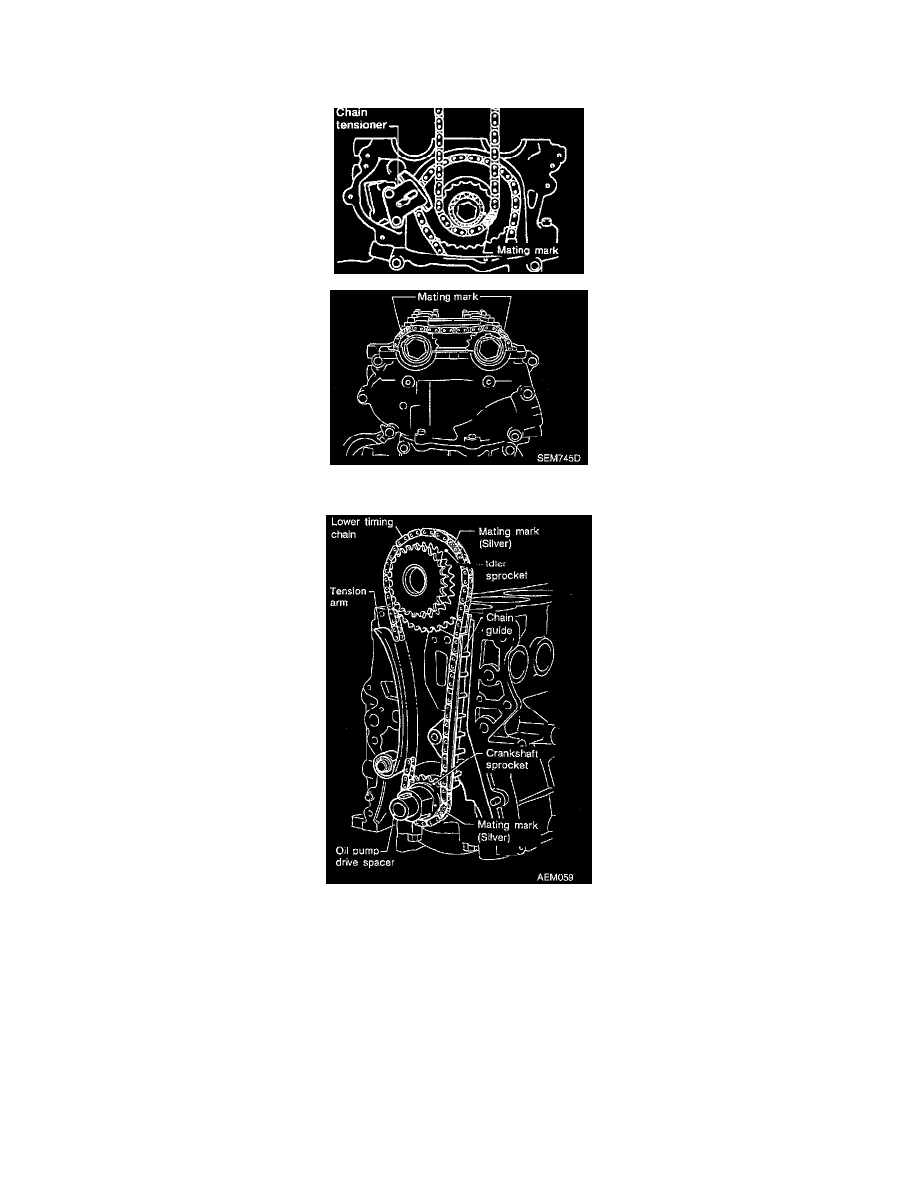

Timing Chain Alignment Marks

Upper

Lower
