Altima SE L4-2.4L (KA24DE) (1997)

Page 1
background image

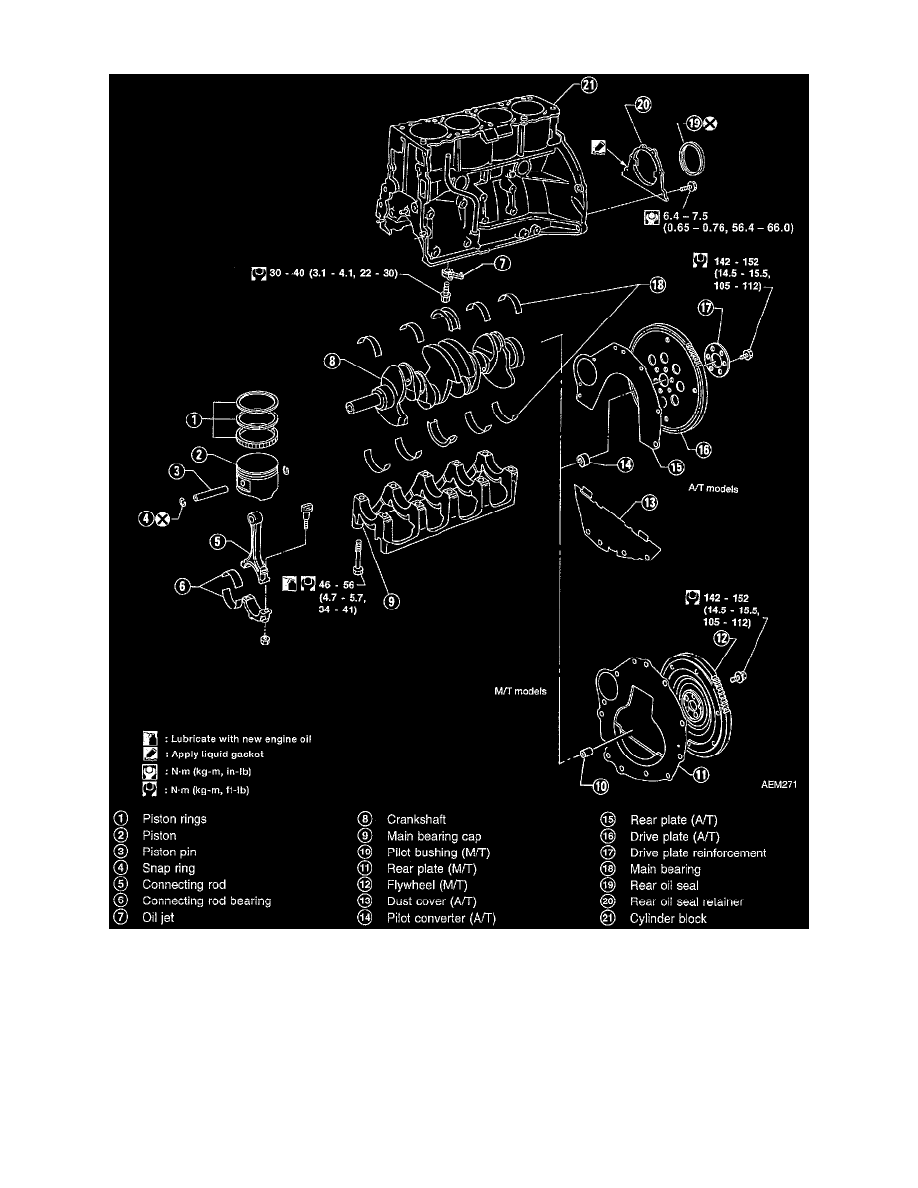

Flywheel: Specifications

TIGHTENING SPECIFICATIONS

Mounting Bolts  ............................................................................................................................................................  142 - 152 Nm (105 - 112 ft. lbs.)

DIMENSIONS

Runout [1] ...................................................................................................................................................................  Less Than 0.15 mm (0.0059 inch)

[1] Total Indicator Reading
