Unibody (Standard Roof): Diagrams
- Make
- Nissan and Datsun
- Model
- NV1500
- Engine
- V6-4.0L (VQ40DE)
- Year
- 2012
- Section
- Unibody › Diagrams › Standard Roof
Body and FrameStandard Roof · page 1 of 2
/Page-14001.png)
Unibody: Diagrams
Standard Roof

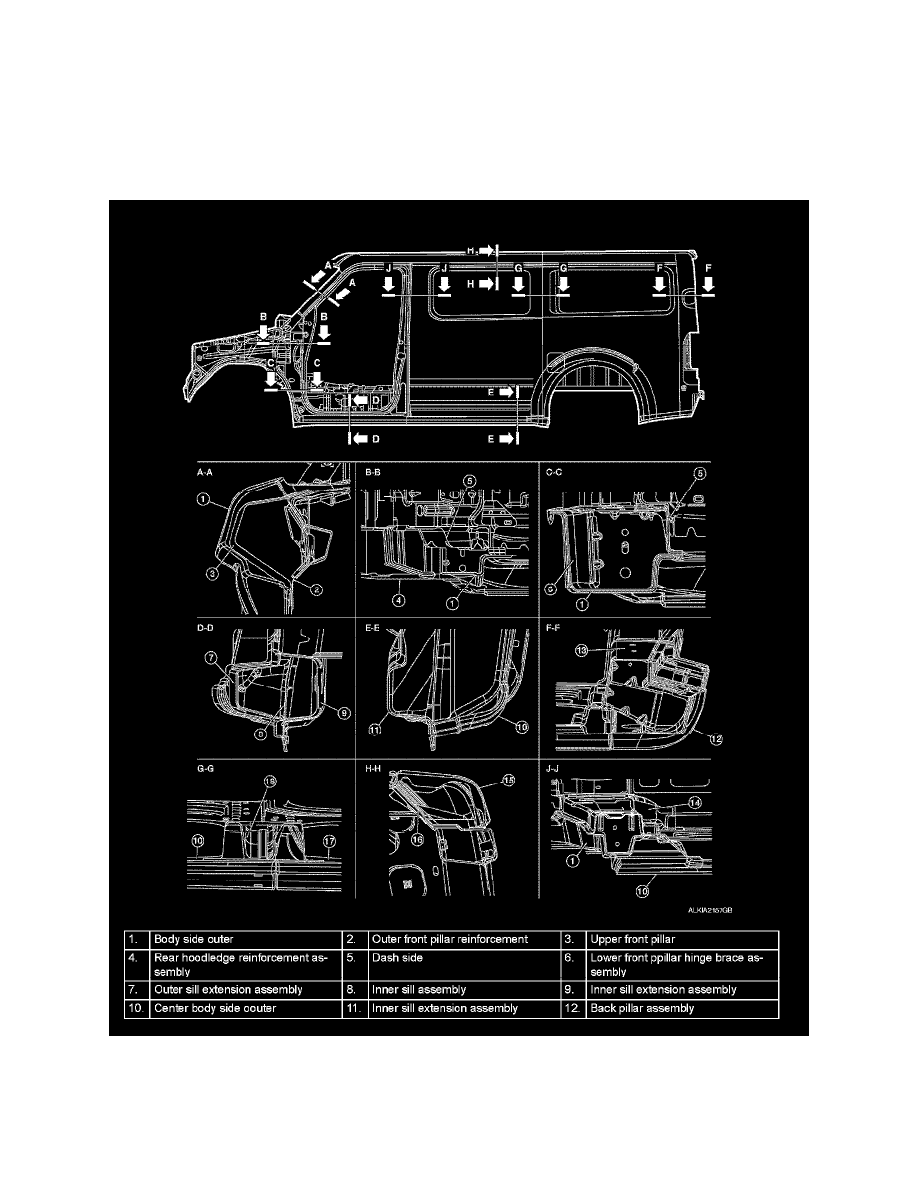

BODY CONSTRUCTION
Body Construction
BODY CONSTRUCTION
2012 NV
2012 NV
Pinch or Ctrl + scroll to zoom. Double-tap to reset.
