Flywheel: Specifications

Make

Nissan and Datsun

Model

Xterra 2WD

Engine

L4-2.4L (KA24DE)

Year

2003

Section

Flywheel › Specifications

Transmission and DrivetrainSpecifications · page 1 of 6

Flywheel: Specifications

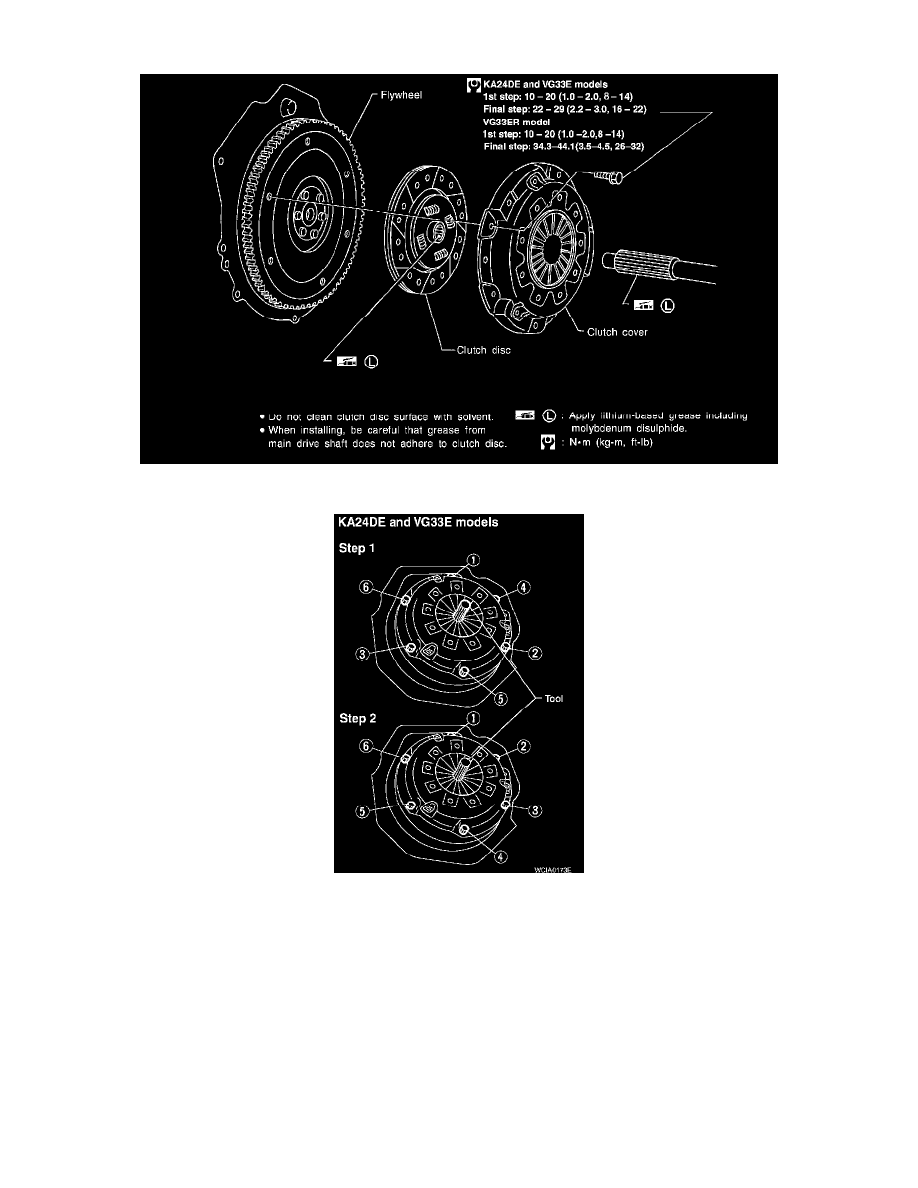

CLUTCH DISC, CLUTCH COVER AND FLYWHEEL

KA24DE, VG33E models

Step 1:...............................10 - 20 Nm (1.0 - 2.0 kgf-cm, 8 - 14 ft. lbs.)
Step 2:........................22 - 29 Nm (2.2 - 3.0 kgf-cm, 16 - 22 ft. lbs.)

Tool number:.........................................ST20630000 (J26366)

Pinch or Ctrl + scroll to zoom. Double-tap to reset.

06 Transmission
