Hose/Line HVAC: Locations

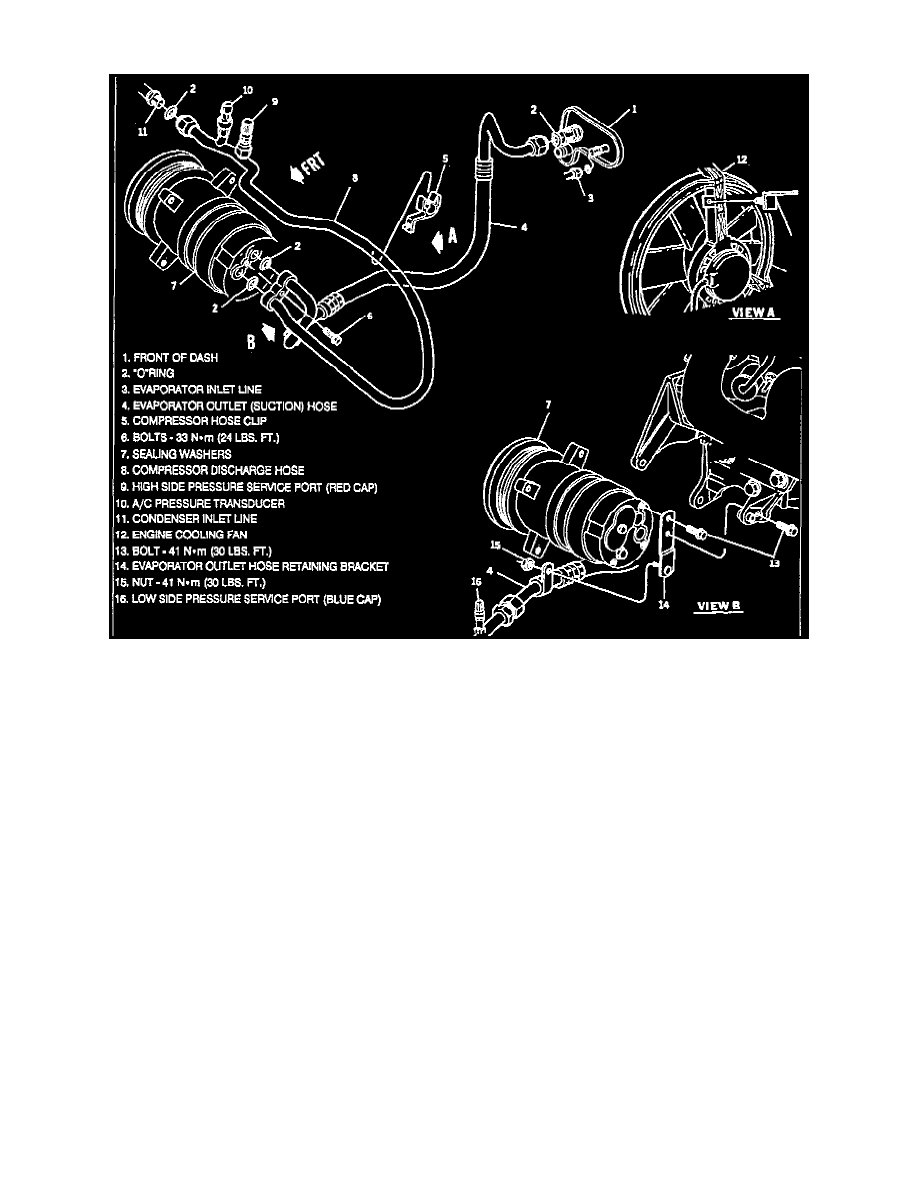

A/C Hose Routing And Service Port Locations
Lines are connected between Condenser, Evaporator, and Compressor.
