Diode: Locations
- Make
- Oldsmobile
- Model
- Calais FWD
- Engine
- V6-181 3.0L
- Year
- 1986
- Section
- Diode › Locations
Power and Ground DistributionLocations

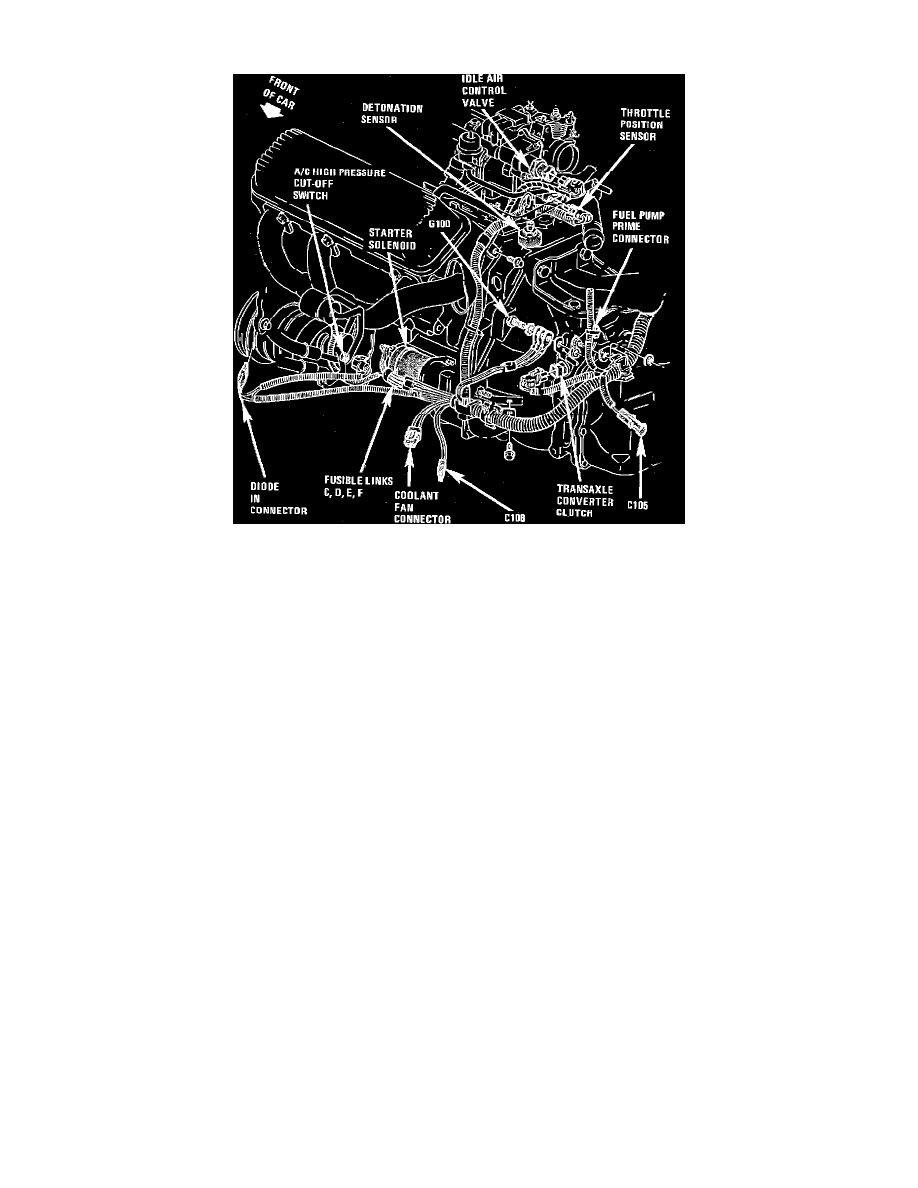

Diode: Locations
RH Front Of Engine.
Lower RH Front Of Engine In Connector On A/C Clutch
Applicable to: 1986 Exc. Grand Am (V6-181/3.0L)
