Gearbox5 speed gearbox · page 4 of 4
Lubrication :
- Oil grade : ESSO GEAR OIL GX 80 W 90
- Total capacity : 1.25 litres
- Difference between max and min on dipstick : 0.150 litres
Gearshift control :
Shift lever on steering column

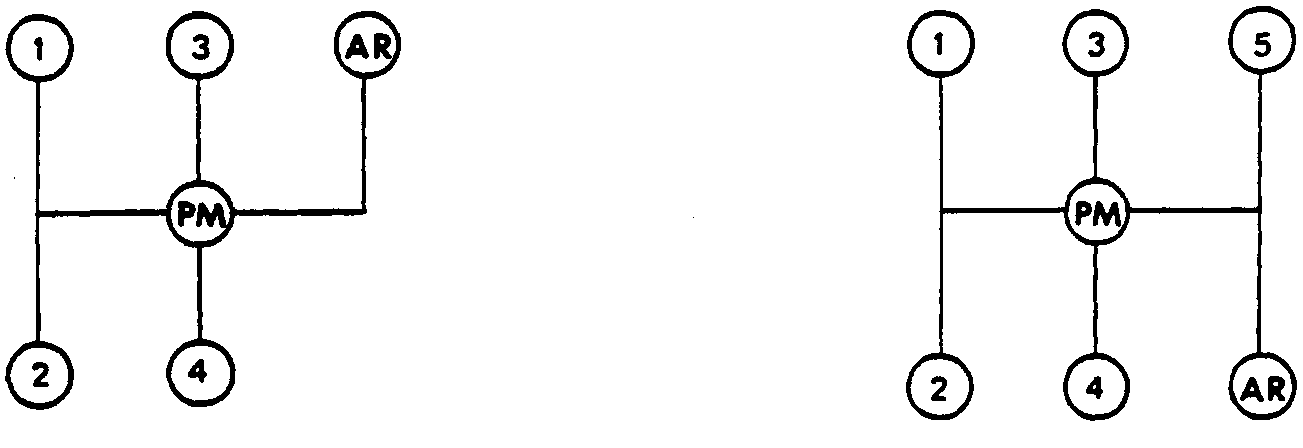

Gearshift gates : 4 speed box (left), 5 speed box (right)
Gearbox drive paths Fig. I
- A : 1st speed
- B : 2nd speed
- C : 3rd speed
- D : 4th speed
- E : 5th speed
- F : Reverse
Adjusting the 4 speed and 5 speed gearbox shift fork stops Figs. II and III.
This operation is carried out with the gearbox removed from the vehicle. The bolts must be coated with jointing compound.
| 3rd speed engaged | Bring the stop screw (1) into contact with the shift fork shaft | Screw in by one turn to ensure positive contact and tighten the nut |
| 4th speed engaged | Bring the stop screw (3) into contact with the shift fork shaft | Screw in by one turn to ensure positive contact and tighten the nut |
| 5th speed engaged | Bring the stop screw (2) into contact with the shift fork shaft | Screw in by one turn to ensure positive contact and tighten the nut |
