Ignition Coil|Diagrams|Page 9157 > < Crankshaft Position Sensor Replacement|Page 9153

G5 L4-2.2L (2007)

Page 1
background image

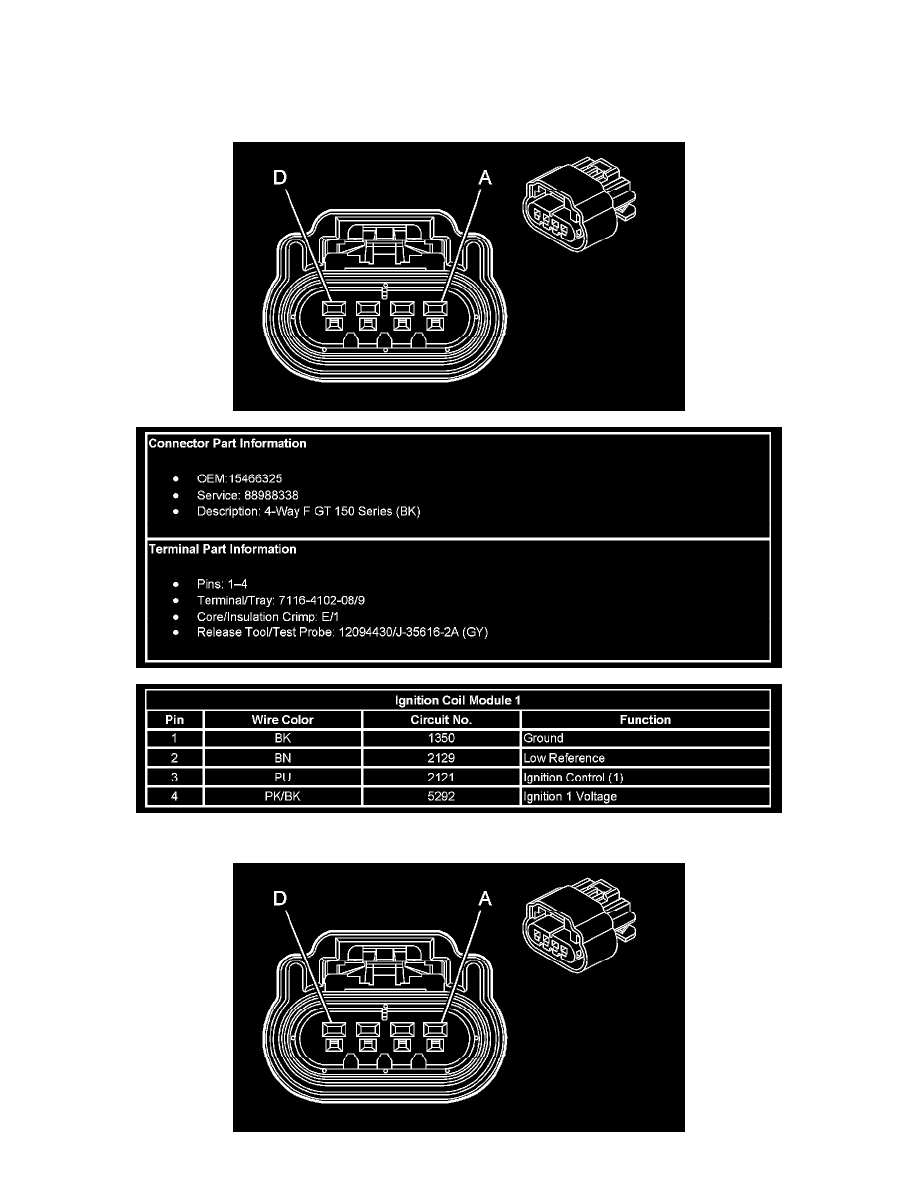

Ignition Coil: Diagrams

Engine Controls Connector End Views

Ignition Coil Module 1

Ignition Coil Module 2

Ignition Coil|Diagrams|Page 9157 > < Crankshaft Position Sensor Replacement|Page 9153
