G6 V6-3.5L (2009)
Timing Component Alignment Marks: Locations
-

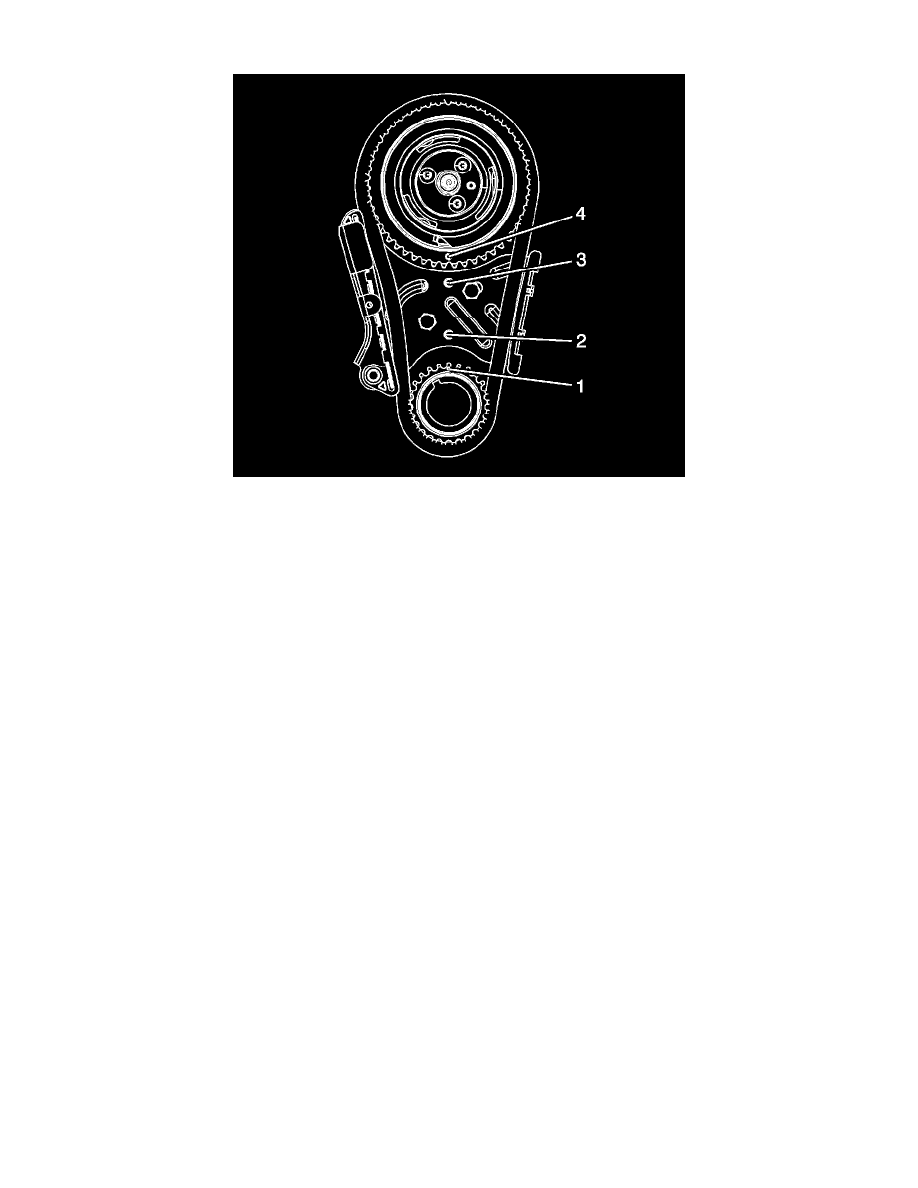

Align the crankshaft timing mark (1) to the timing mark on the bottom of the timing chain tensioner (2).
-
Hold the camshaft sprocket with the timing chain hanging down and install the timing chain to the crankshaft gear.
-
Align the timing mark on the camshaft position actuator gear (4) with the timing mark on top of the timing chain tensioner (3).
