G6 V6-3.5L (2009)
Ignition Control Module: Locations
Powertrain Component Views

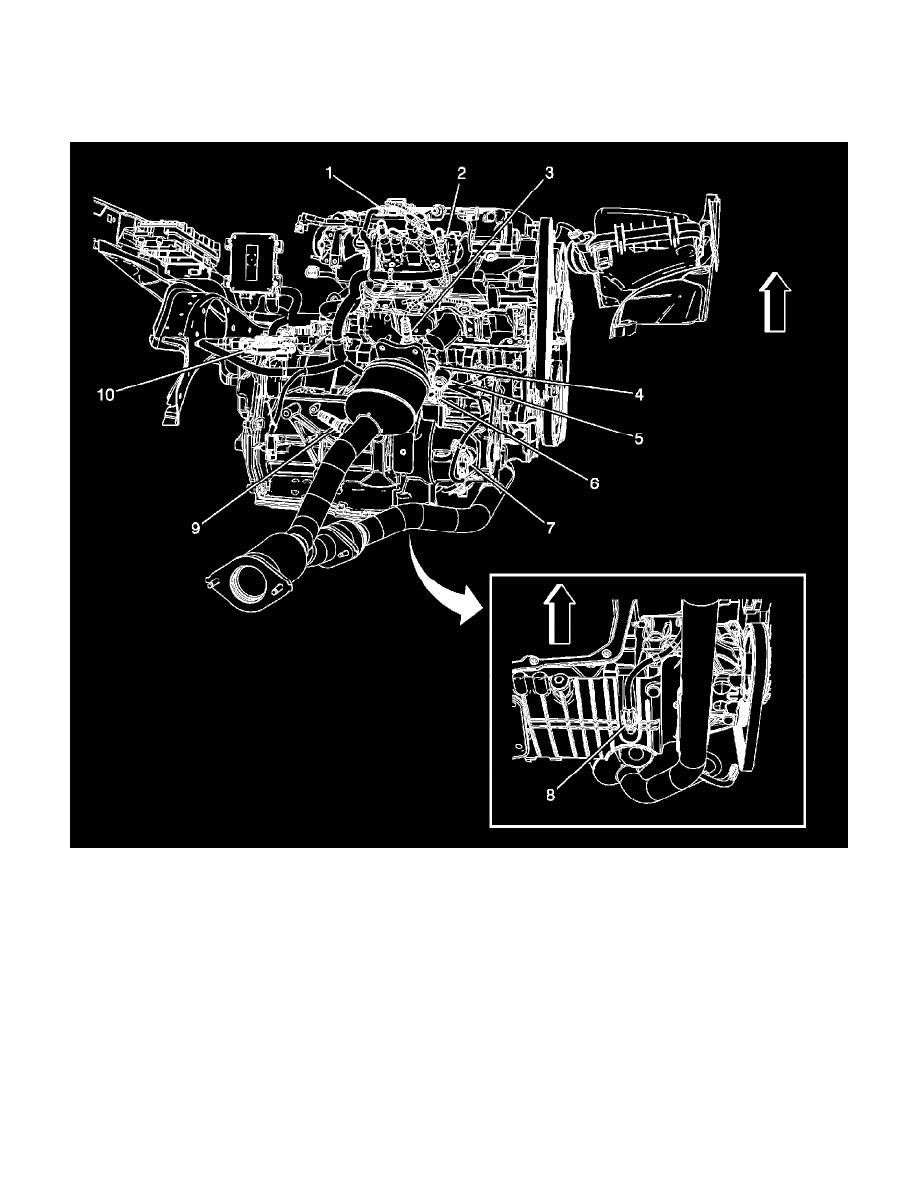

Rear of Engine Components (LZ4)
1 - Manifold Absolute Pressure (MAP) Sensor
2 - Ignition Control Module (ICM)
3 - Heated Oxygen Sensor (HO2S) - Bank 1 Sensor 1
4 - Knock Sensor (KS)1
5 - Engine Coolant Temperature (ECT) Sensor
6 - Crankshaft Position (CKP) Sensor
7 - Vehicle Speed Sensor (VSS) (MN5/M15)
8 - Engine Oil Level Sensor
9 - Heated Oxygen Sensor (HO2S) - Bank 1 Sensor 2
10 - Park / Neutral Position (PNP) Switch (MN5)
