Splash Guard: Service and Repair
Engine Splash Shield Replacement
Removal Procedure
Caution: Refer to Vehicle Lifting Caution (See: Maintenance/Vehicle Lifting/Service Precautions) .
Caution: Refer to Safety Glasses Caution (See: Service Precautions/Technician Safety Information/Safety Glasses Warning) .
1. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle (See: Maintenance/Vehicle Lifting/Service and Repair) .

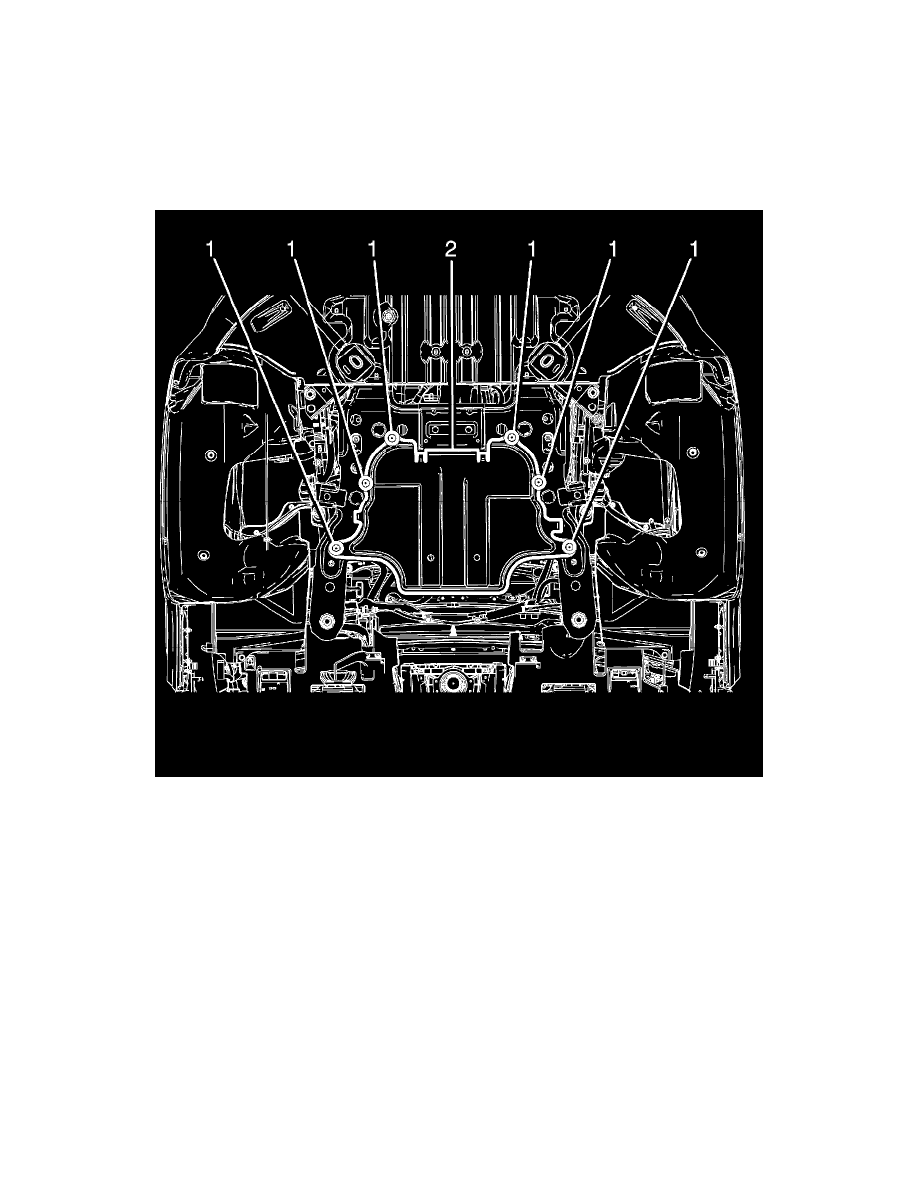

2. Remove the engine splash shield to front subframe retaining screws (1).
3. Remove the engine splash shield (2) from the front subframe.
Installation Procedure
