Ignition Coil: Locations

Make

Pontiac

Model

G8

Engine

V6-3.6L

Year

2008

Section

Ignition System › Ignition Coil › Locations

Powertrain ManagementLocations · page 1 of 16

Ignition Coil: Locations

Powertrain Component Views (LY7 - Gas, 6 Cylinder, 3.6L, SFI, V6)

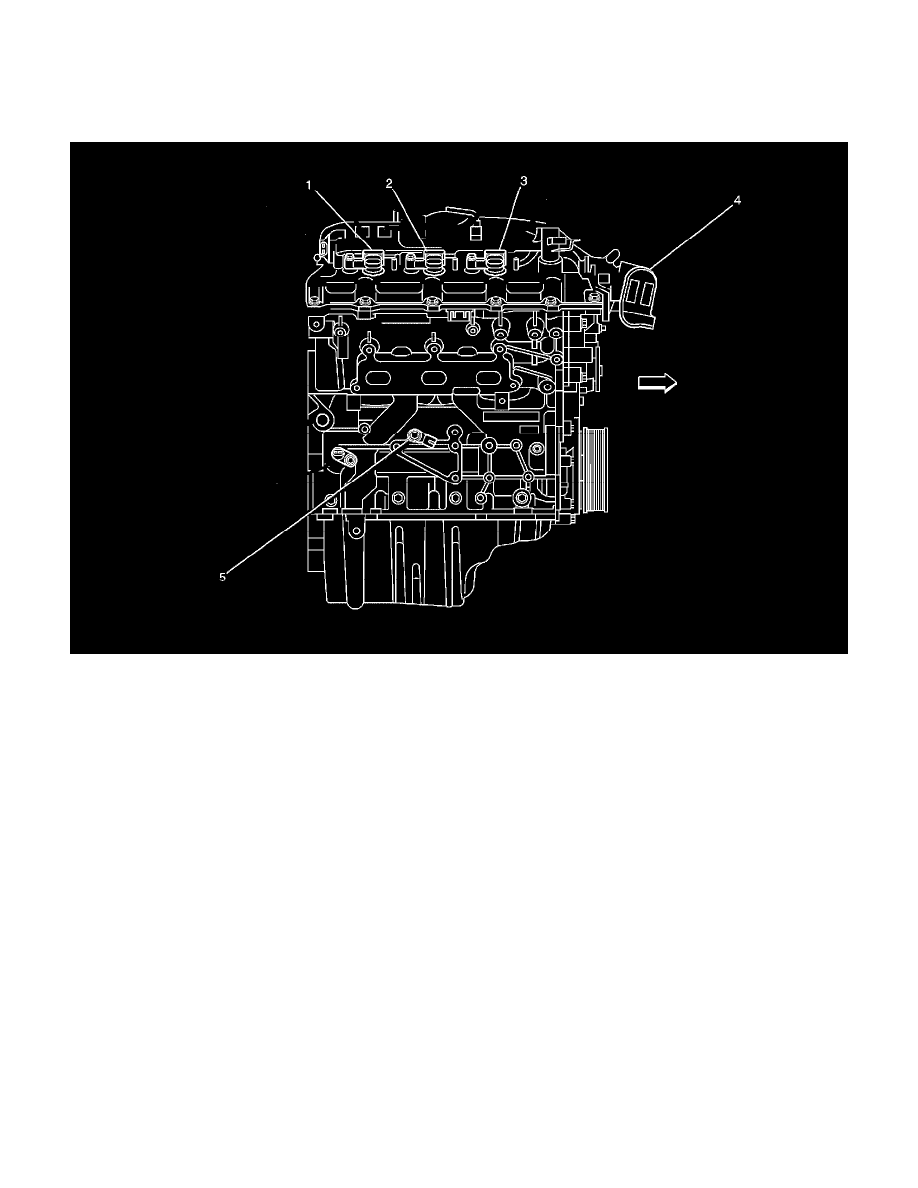

Engine Controls Components - Bank 1

1 - Ignition Coil 5
2 - Ignition Coil 3
3 - Ignition Coil 1
4 - Throttle Body Assembly
5 - Knock Sensor (KS) - Bank 1

Engine Controls Components - Bank 2
