G8 V8-6.0L (2009)

Page 13
background image

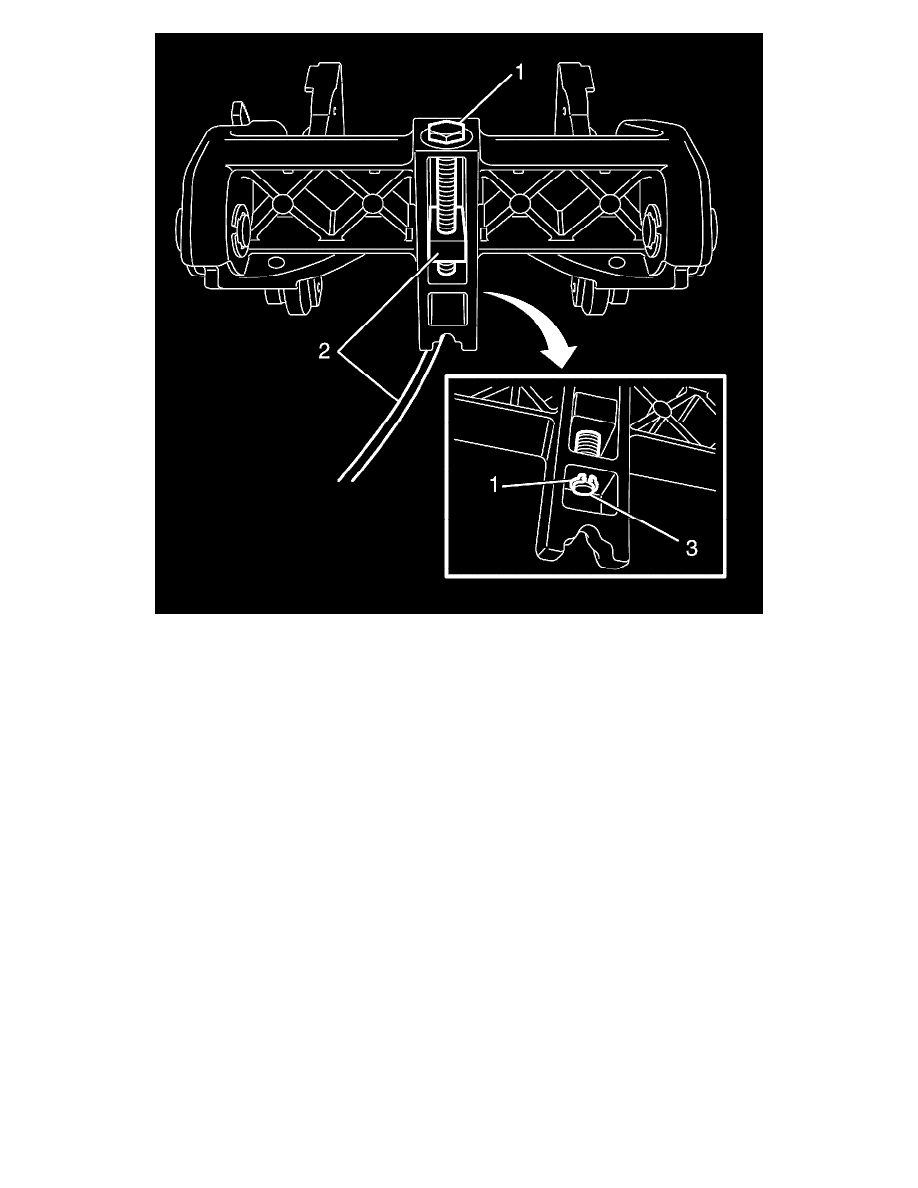

4. Install the front park brake cable (2) into position.
5. Install the park brake cable adjustment bolt (3).
6. Install the park brake cable adjustment bolt to park brake assembly retaining circlip (1).
