Grand AM L4-151 2.5L (1986)

Page 1
background image

Compressor Clutch Relay: Locations

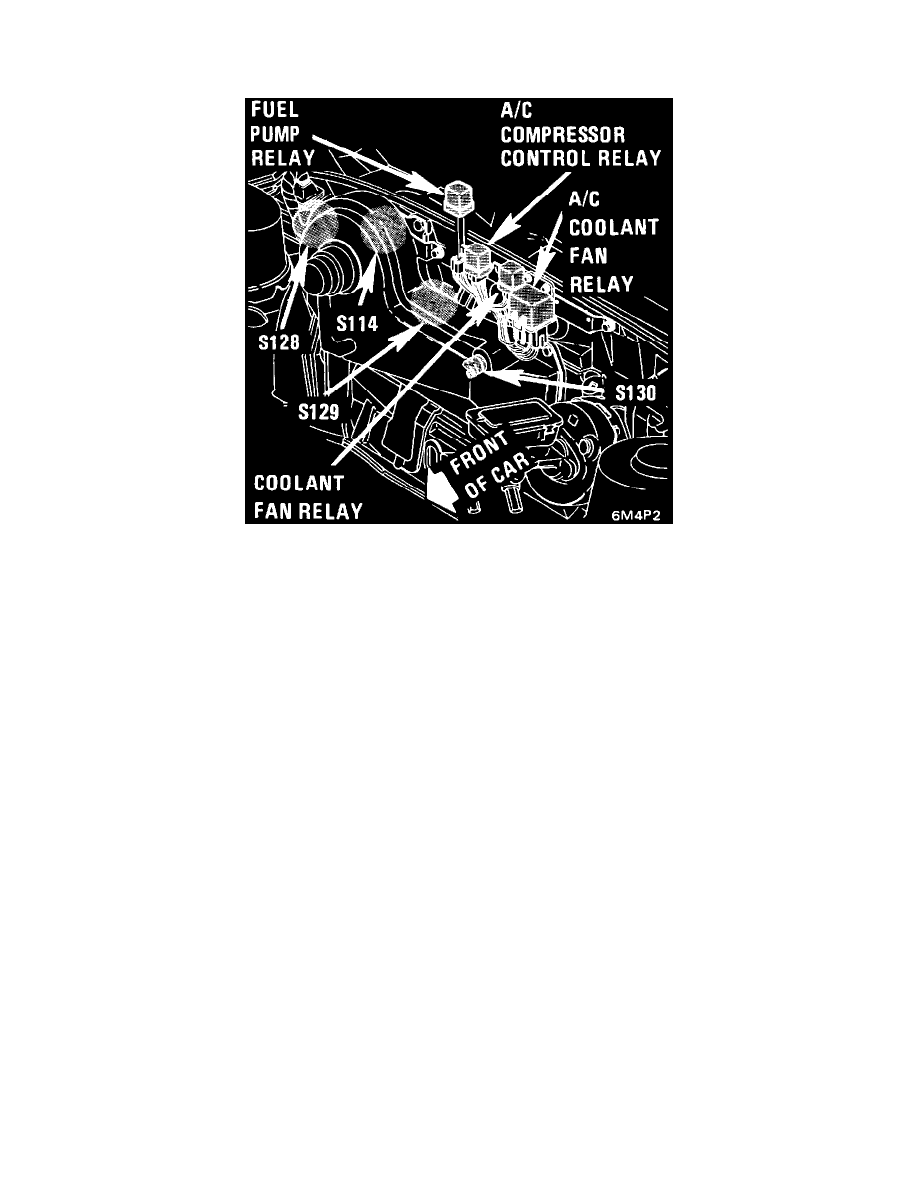

Compressor Control Relay

A/C Copressor Control Relay

The A/C Compressor Control Relay is located at the center of the dash on the relay bracket.
