Pontiac Parisienne V6-231 3.8L (1983)03 · Maintenance
03 · Maintenance

Belt Tension - Used (Drive Belt)

Make
Pontiac
Model
Parisienne
Engine
V6-231 3.8L
Year
1983
Section
Drive Belt › Specifications › Belt Tension - Used
MaintenanceBelt Tension - Used · page 1 of 3

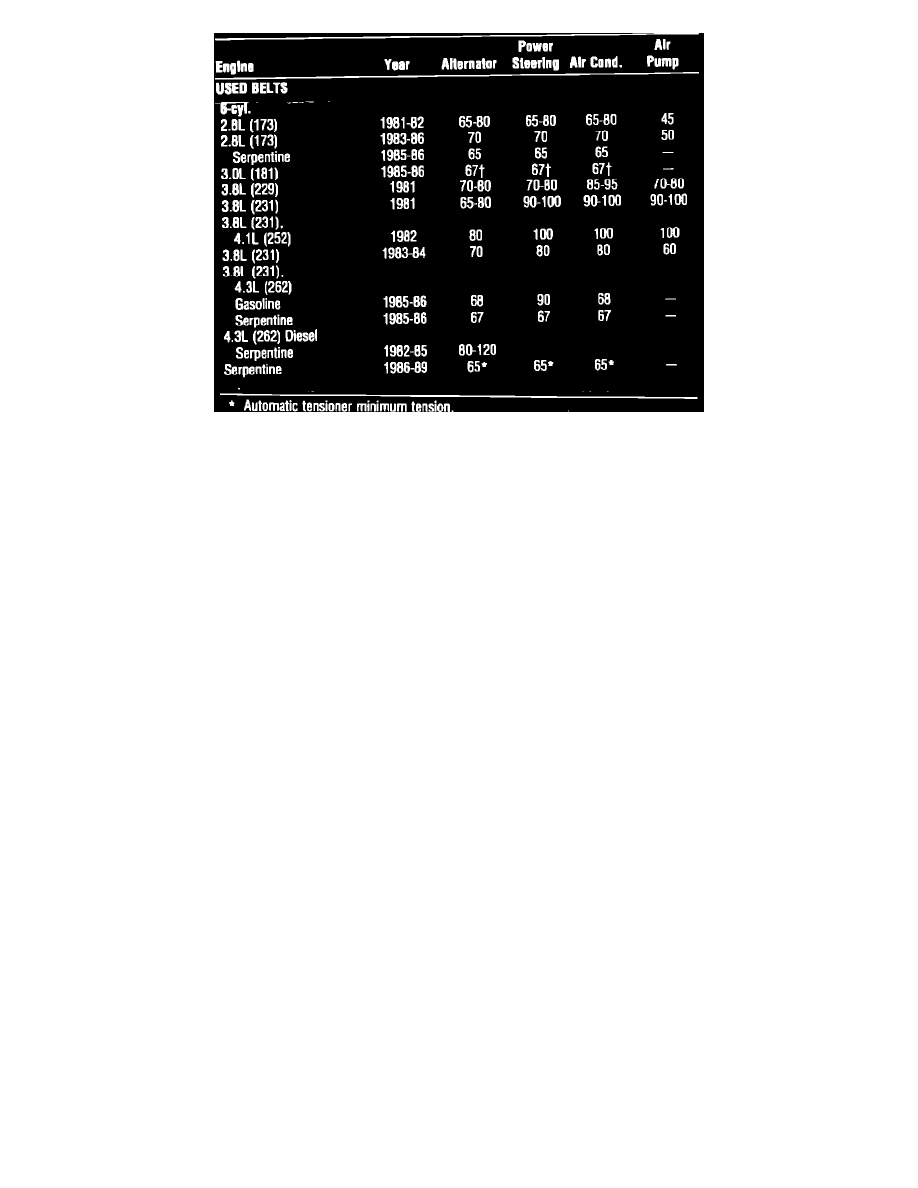

Belt Tension - Used (Drive Belt) – diagram from the Maintenance chapter of the Pontiac Parisienne V6-231 3.8L (1983) factory manual.

Diagram: Belt Tension - Used (Drive Belt) – Pontiac Parisienne V6-231 3.8L (1983)

BELT TENSION - USED BELTS

Pinch or Ctrl + scroll to zoom. Double-tap to reset.
