Ignition Coil|Diagrams|Page 9123 > < Crankshaft Position Sensor Replacement|Page 9119

Solstice L4-2.4L (2007)

Page 1
background image

Ignition Coil: Diagrams

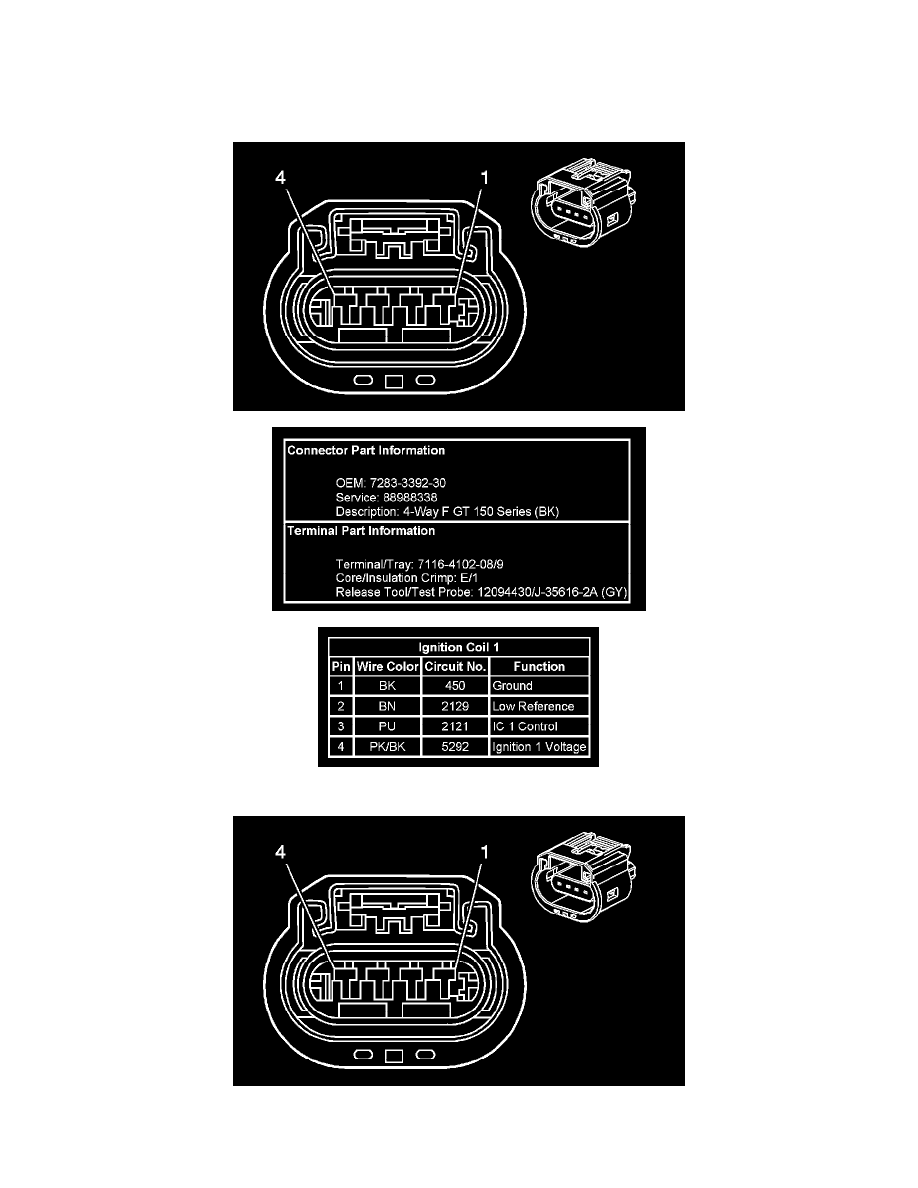

Engine Controls Connector End Views

Ignition Coil 1

Ignition Coil 2

Ignition Coil|Diagrams|Page 9123 > < Crankshaft Position Sensor Replacement|Page 9119
