Solstice L4-2.4L (2007)
Wiper Motor: Locations
Wiper/Washer Component Views

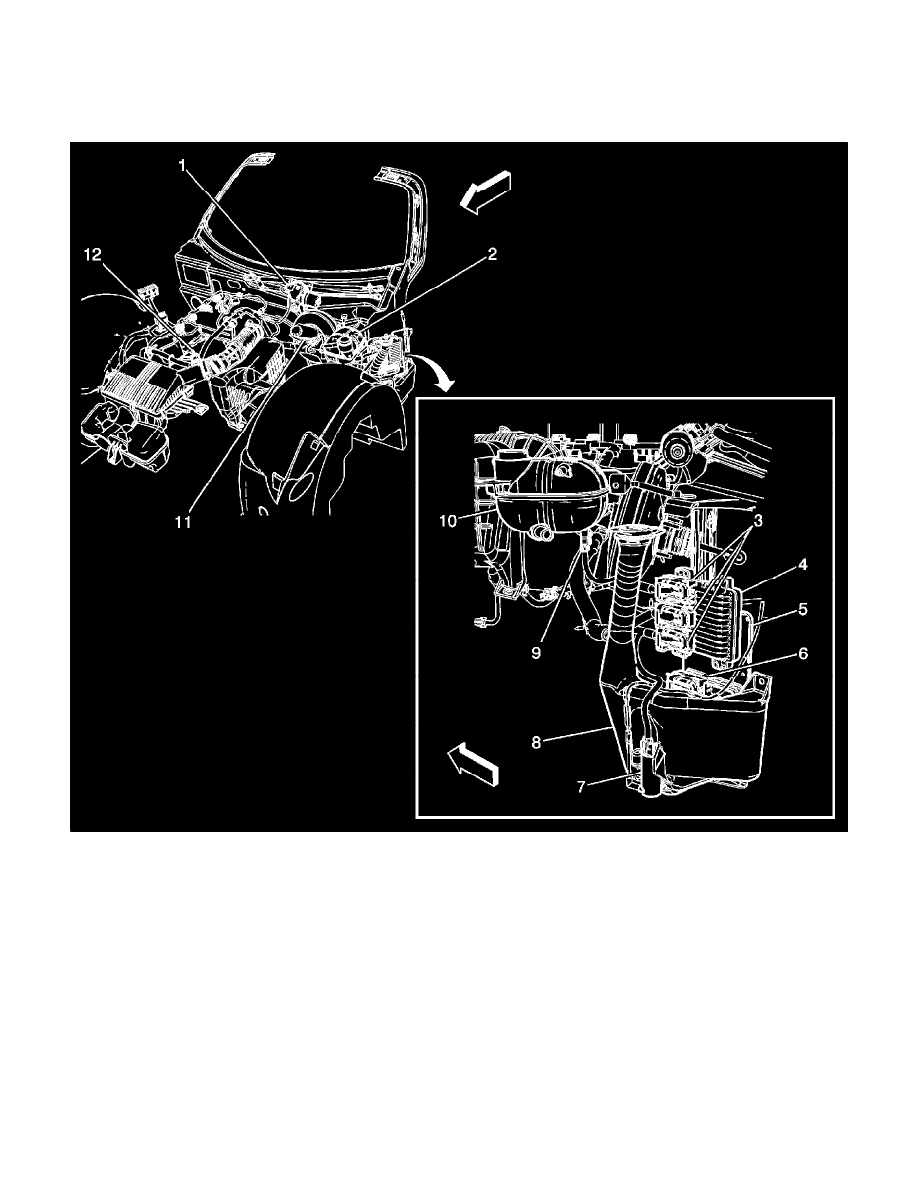

Front Engine Compartment
Front Engine Compartment
1 - Windshield Wiper Motor and Module
2 - Coolant Surge Tank
3 - Engine Control Module (ECM) Connectors
4 - Engine Control Module (ECM)
5 - Transmission Control Module (TCM) (M82)
6 - Transmission Control Module (TCM) Connector (M82)
7 - Windshield Washer Fluid Pump
8 - Windshield Washer Fluid Container
9 - Engine Coolant Level Switch
10 - Coolant Surge Tank
11 - Brake Fluid Level Switch
12 - Mass Air Flow (MAF)/Intake Air Temperature (IAT) Sensor
