Starter Relay: Locations

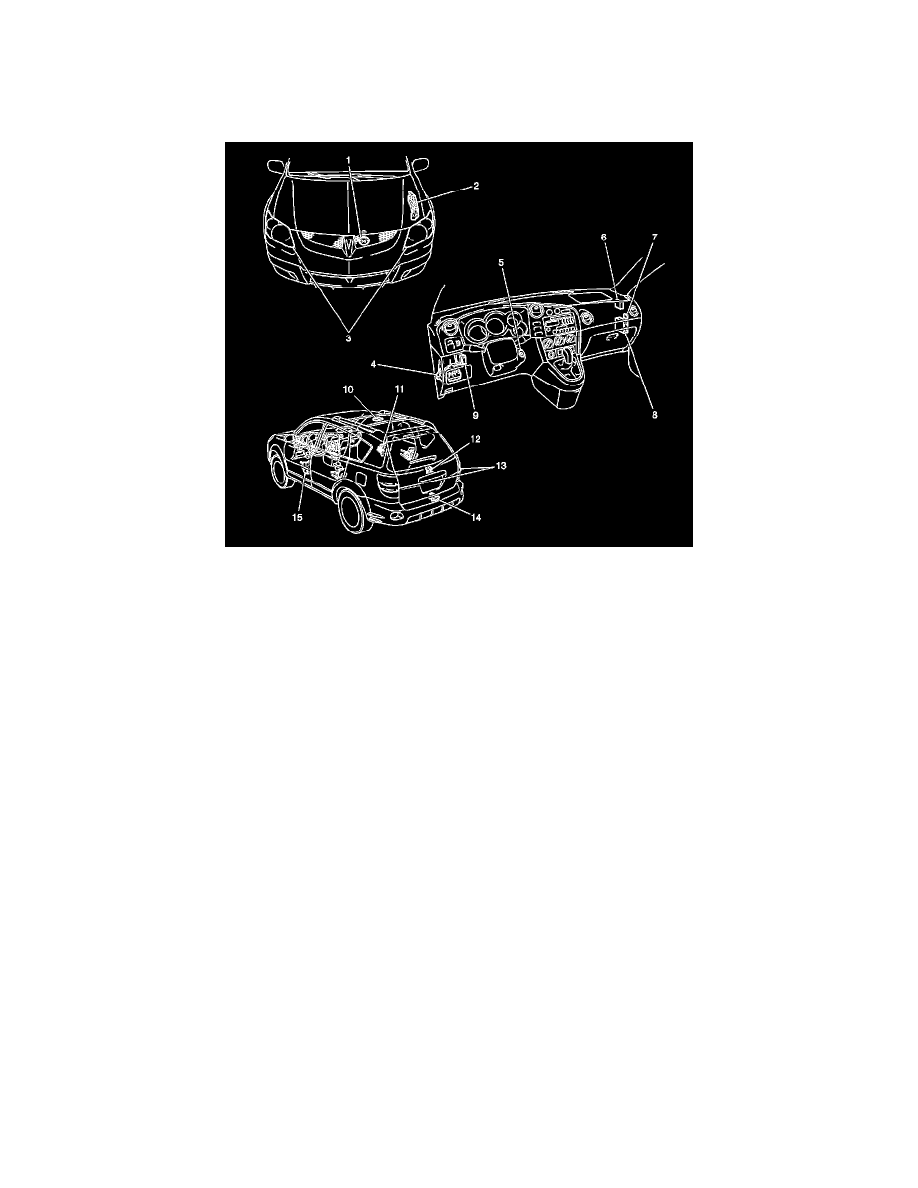

Theft Deterrent System Component Views

Theft Deterrent Component Views

1 - Horn
2 - Engine Room Fuse Block
3 - Head Lamps
4 - Instrument Panel Fuse Block
5 - Ignition Switch
6 - Glass Breakage Sensor
7 - Starter Cut Relay
8 - Theft Deterrent Control Module
9 - Security Indicator
10 - Interior Dome Lamp
11 - Passenger Front Door Lock Assembly
12 - Glass Hatch Lock Assembly
13 - Rear Hazard Lamps
14 - Tailgate Lock Assembly
15 - Drivers Front Door Lock Assembly
