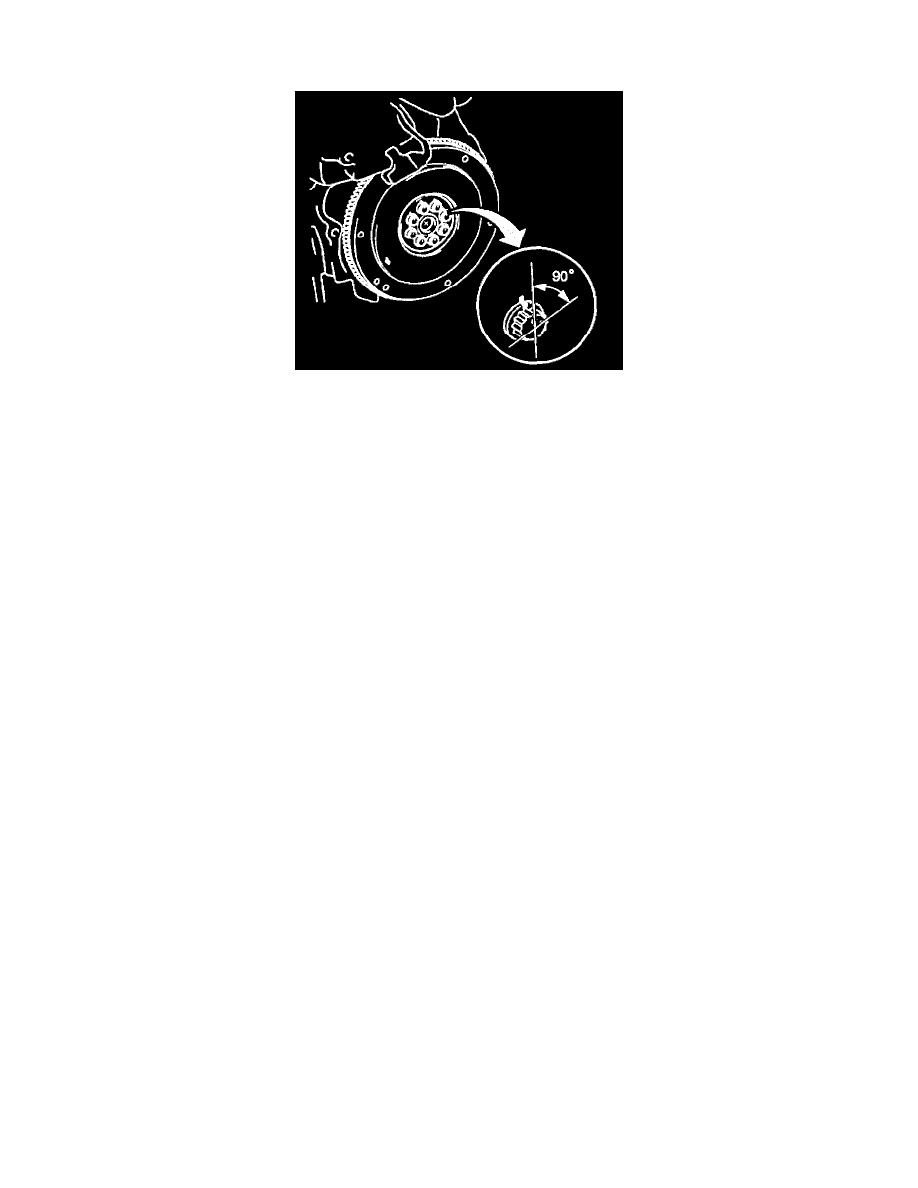

Flywheel: Specifications



  First Step ................................................................................................................................................................................................  49 Nm. (36 ft. lbs.)

  Second Step ...................................................................................................................................................   tighten the flywheel bolts an additional 90°.
