Ignition Relay: Locations
- Make
- Pontiac
- Model
- Vibe AWD
- Engine
- L4-2.4L
- Year
- 2009
- Section
- Ignition System › Ignition Relay › Locations
Powertrain ManagementLocations · page 1 of 3
Ignition Relay: Locations
Electrical Center Identification Views

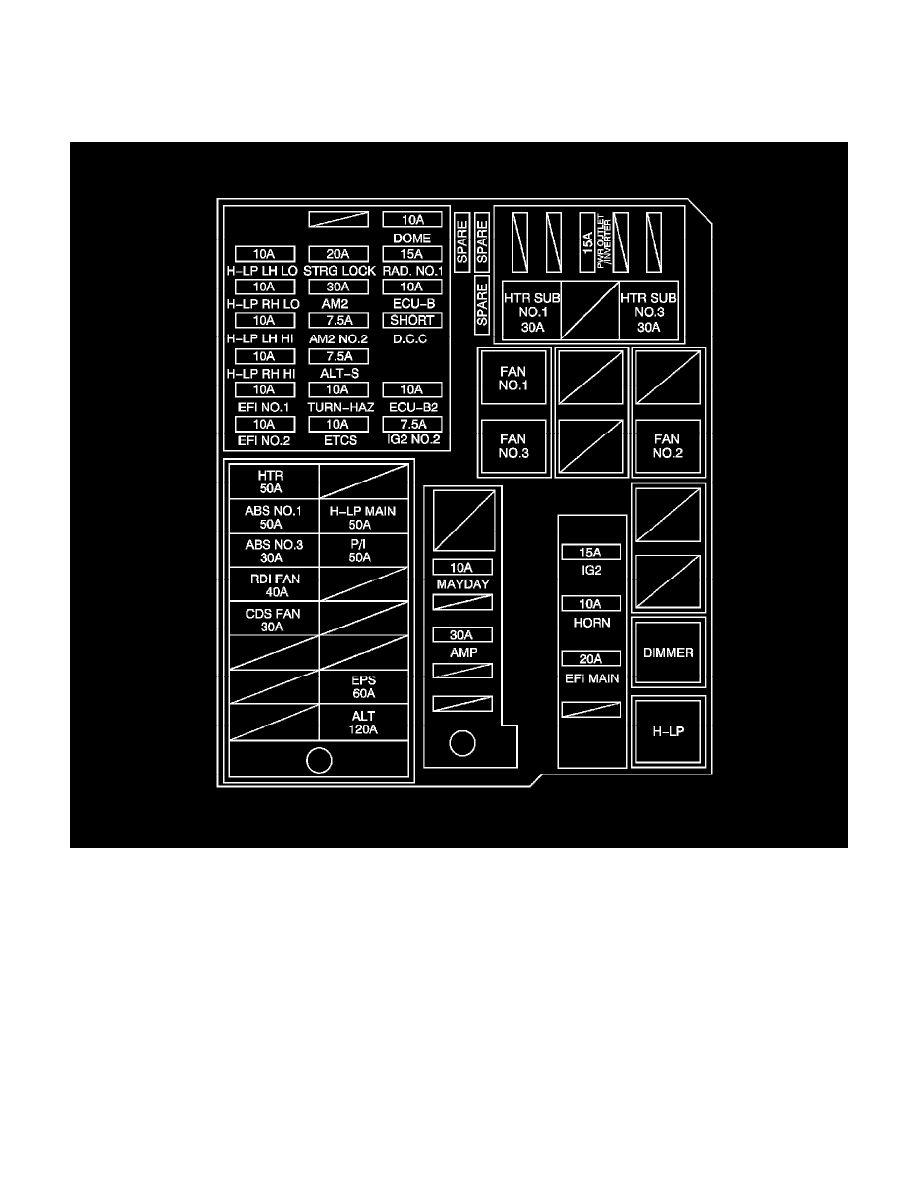

Fuse Block - Underhood Label
