Vibe AWD L4-2.4L (2009)

Page 1
background image

Wiper Switch: Diagrams

Component Connector End Views

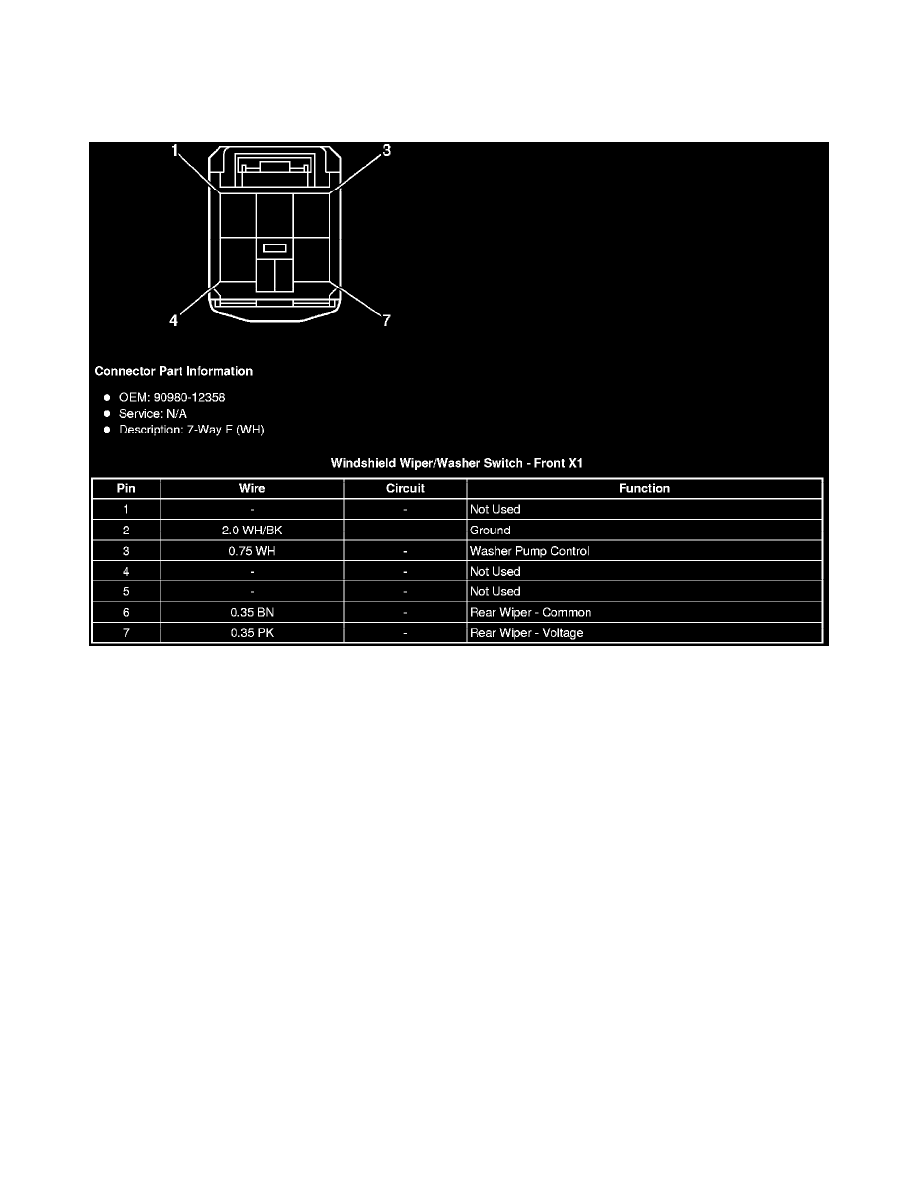

Windshield Wiper/Washer Switch - Front X1

Windshield Wiper/Washer Switch - Front X2
