Alignment: Specifications – Porsche 911 Carrera 4 (997) F6-3.6L (2007)

Alignment: Specifications

ADJUSTMENT VALUES FOR SUSPENSION ALIGNMENT - C4/C4S

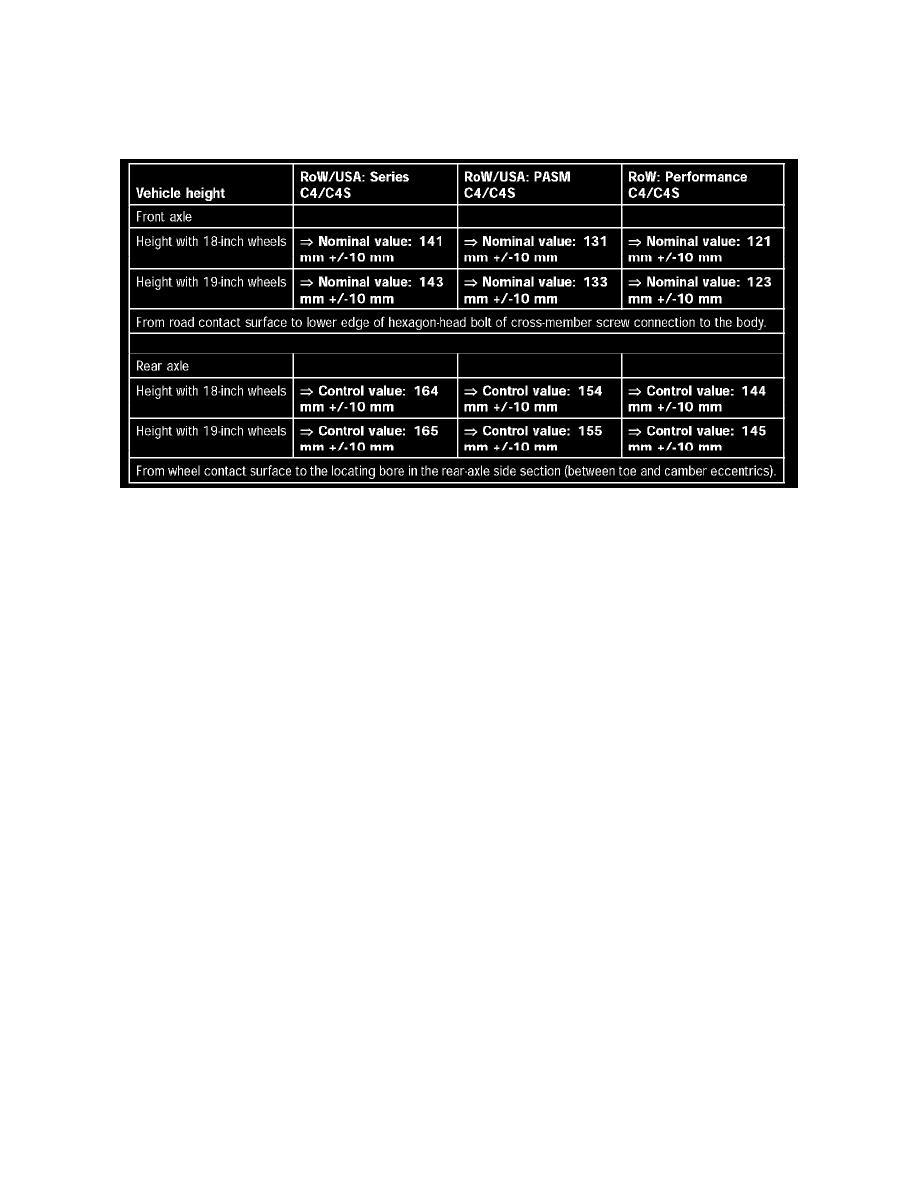

Vehicle height

NOTE:  The following values relate to the empty weight, i.e. full fuel tank, vehicle with tools, but without driver and without additional weights!

Vehicle Height

Wheel Alignmemt Values

WARNING:  Risk of accident due to incorrect functioning of steering angle sensor if it is uncalibrated or incorrectly calibrated.
-

There is a risk of accidents causing physical damage to persons or objects in the PSM testing area.
-

After working on wheel suspension parts, when replacing the steering-angle sensor and after changing the wheel alignment values,
calibrate the steering angle sensor with the front wheels in straight-ahead position using the PIWIS tester.


-

Check the actual value of the steering angle sensor after a suspension alignment where no changes were made to the wheel alignment
values.


NOTE:
-

The following values relate to the empty weight, i.e. full fuel tank, vehicle with tools but without driver or additional weights.

-

The toe-difference angle value is also influenced by the vehicle height. For this reason the measured result must be evaluated accordingty. No
action is necessary in the case of small deviations from the toe-difference angle's required value as long as the value to the right and left is almost
the same.
