911 Carrera 4 Cabriolet (997) F6-3.6L (2006)
/f6-3.6l/Page-306012.png)

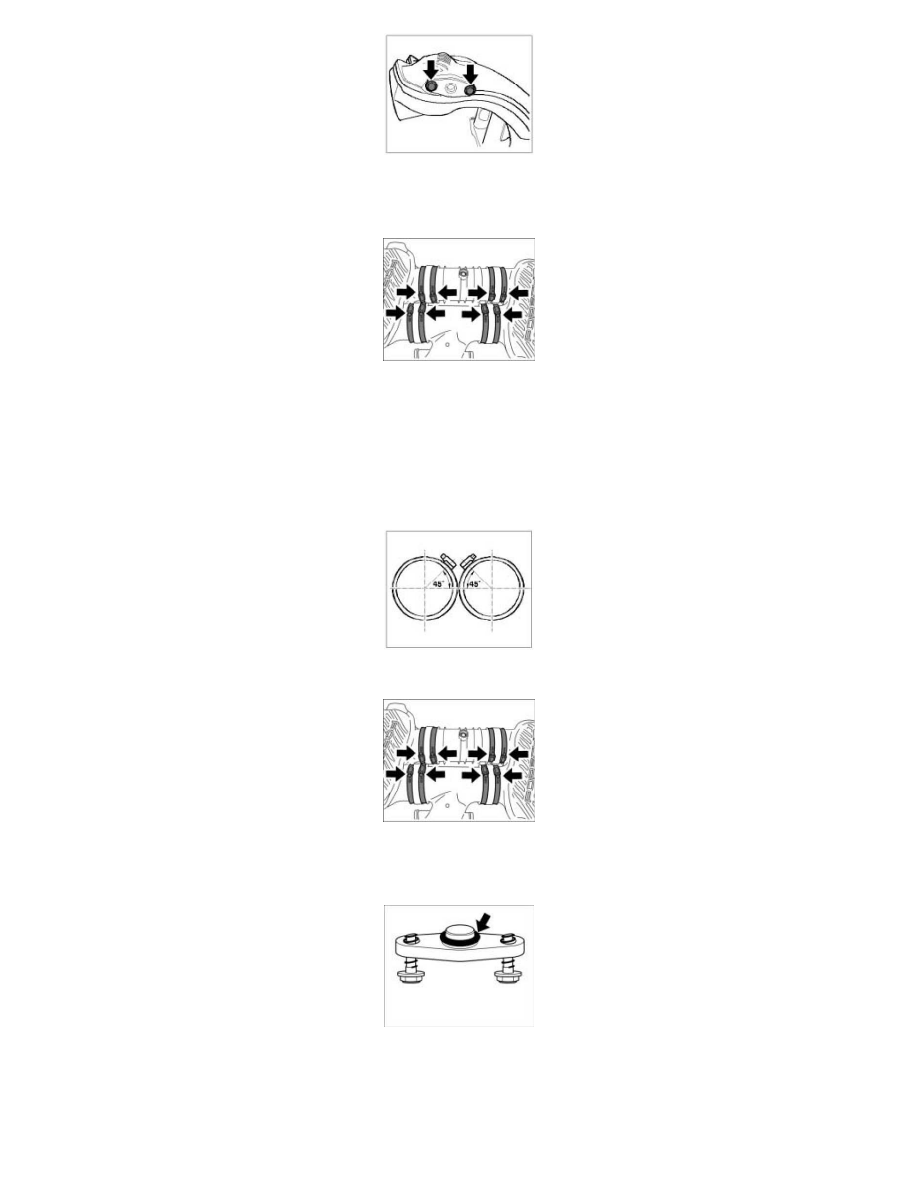

Cap Of Intake-air Distributor
10. Remove cap by unscrewing the two plastic screws.
Screw-type Hose Clamps For Intake-air Distributor
11. Loosen screw-type hose clamps -arrows- and disconnect intake-air distributor.
12. Thoroughly clean components before assembly. Do not treat the surface with strong cleaning agents.
Assembling intake-air distributor
NOTE: Always replace O-rings and gaskets.
Installation Position Of Screw-type Hose Clamps
Screw-type Hose Clamps For Intake-air Distributor
1. Join intake-air distributor with the rubber sleeves, then position and tighten the screw-type hose clamps -arrows-.
O-ring For Cap
2. Replace O-rings -arrow- of cap and lightly grease with Optimol MP3.
