Timing Belt: Adjustments
CHECKING AND ADJUSTING TOOTHED BELT (32 VALVE ENGINE)
Checking

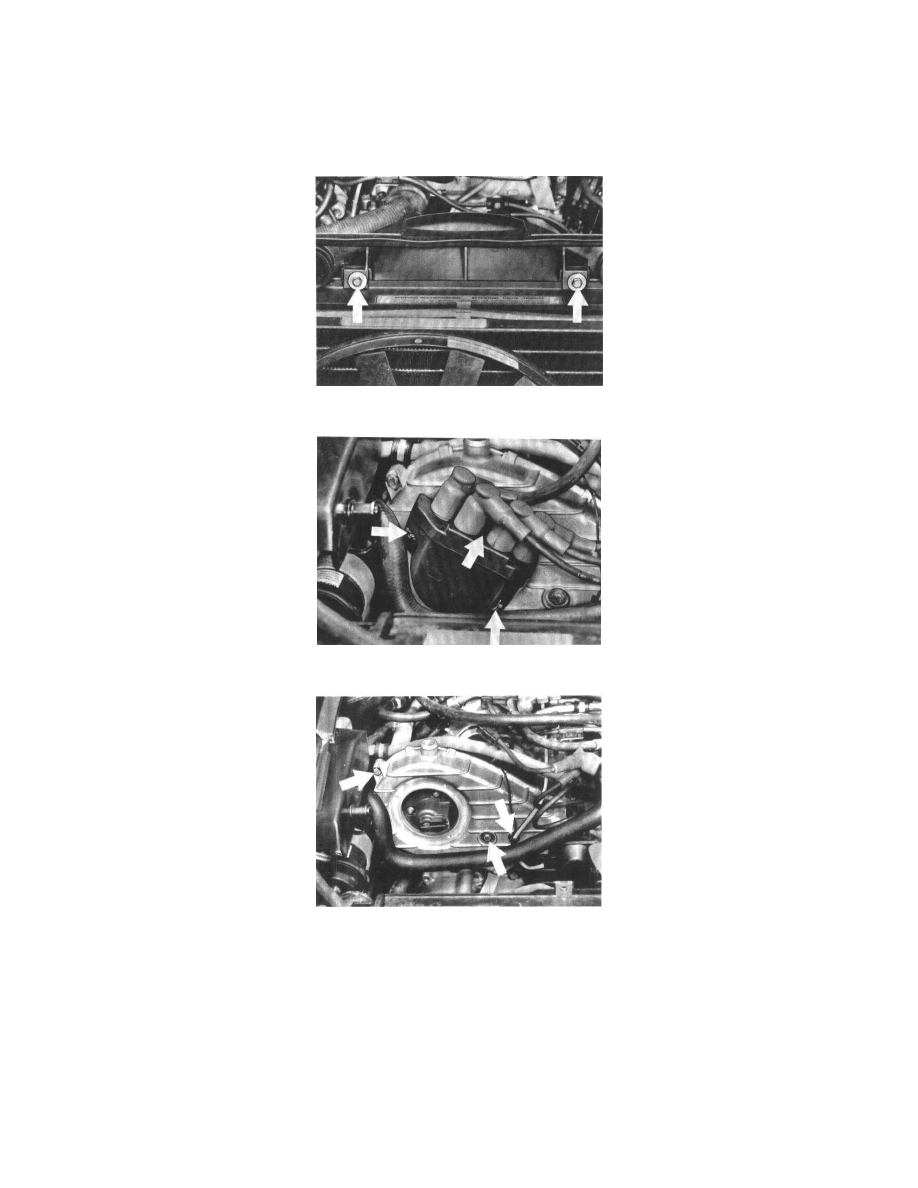

1. Remove air guide hoses.
2. Unscrew two self-tapping screws and take off upper air guide section from above.
3. Unscrew and take off distributor caps and toothed belt cover upper section on righthand side.
4. Unscrew and push toothed belt cover upper section on lefthand side forward.
