Alignment: Specifications

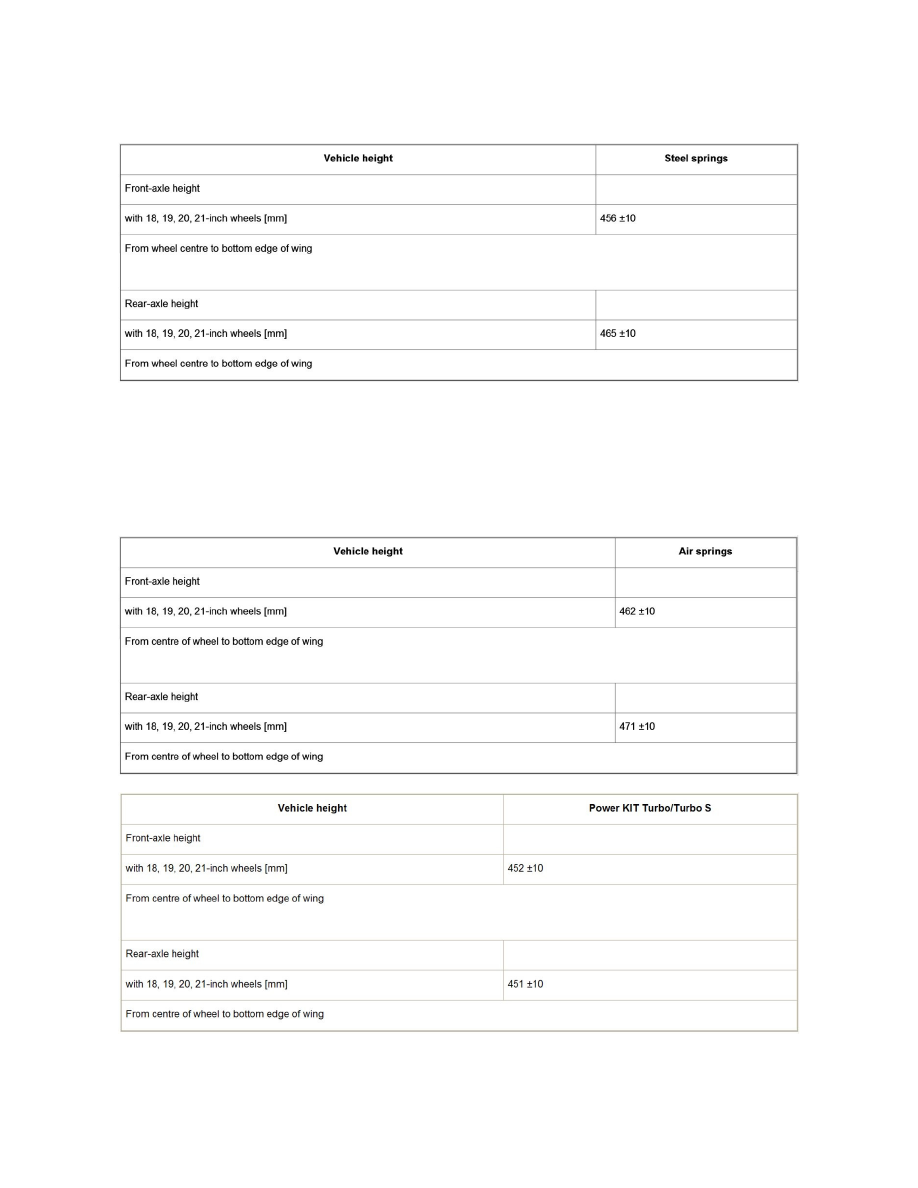

Adjustment Values for Suspension Alignment
Vehicle height with steel springs - USA, with and without PASM
Information
-
The following values relate to the curb weight, i.e. full fuel tank, vehicle with tyre repaire kit (or spare wheel collapsible wheel) and tools, but
without driver and without additional weights.
-
Tyre pressure in accordance with specifications.
-
If the control unit or one of the self-leveling sensors has been replaced, calibration must be carried out using the Porsche System Tester.
Vehicle Height, Air Springs
Information
-
The following values relate to the curb weight, i.e. full fuel tank, vehicle with tyre repaire kit (or spare wheel collapsible wheel) and tools, but
without driver and without additional weights.
-
Tyre pressure in accordance with specifications.
-
If the control unit or one of the self-leveling sensors has been replaced, calibration must be carried out using the Porsche System Tester.
