Rover 100 Circuit Diagrams05 · Power distribution
05 · General

Power distribution header joints

Make
Rover
Model
100 Circuit Diagrams
Section
Power distribution header joints › Power distribution header joints
Power distributionPower distribution header joints

POWER DISTRIBUTION HEADER JOINTS

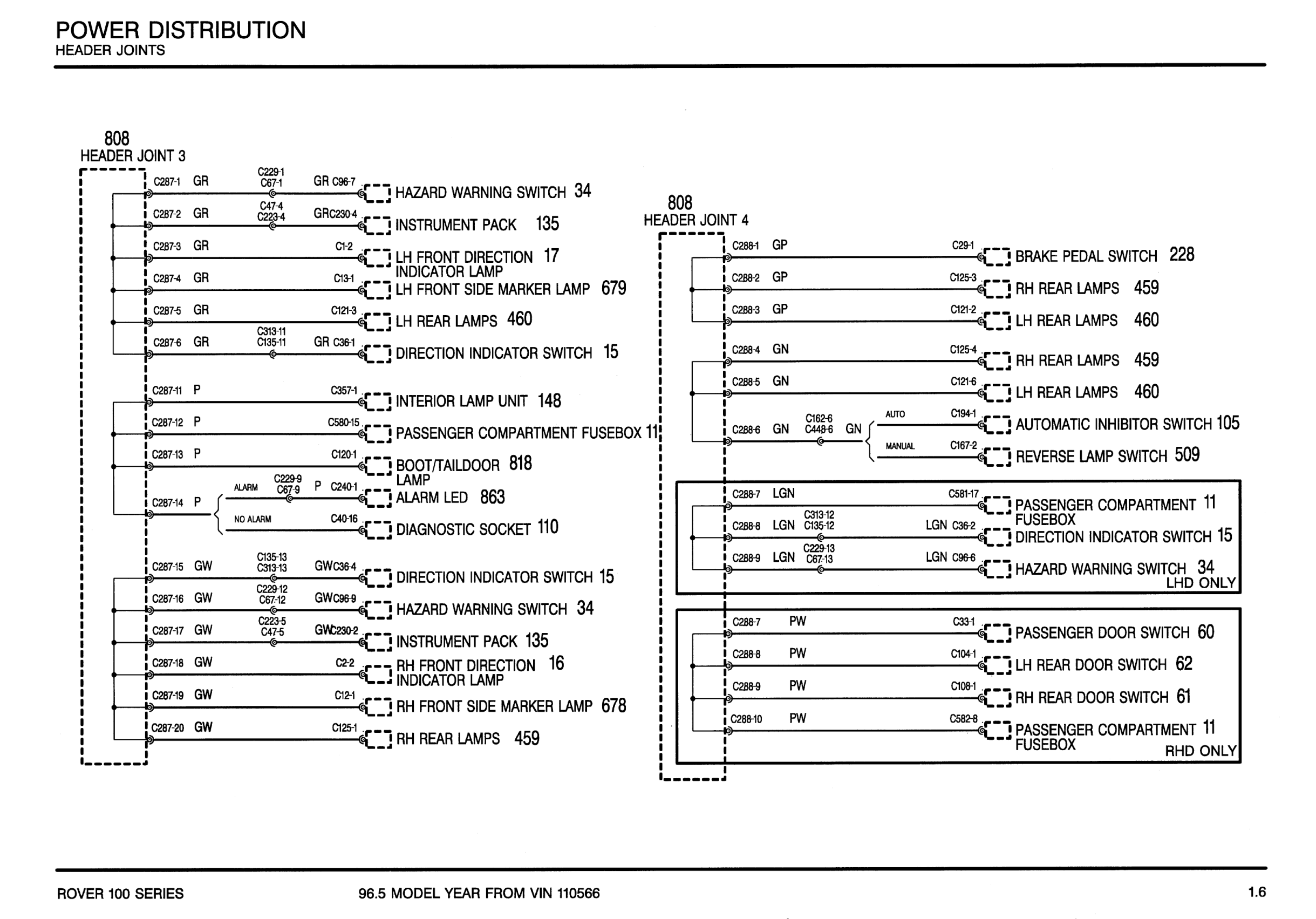

Power Distribution Header Joints circuit diagram
