JACKING, SUPPORTING AND TOWING

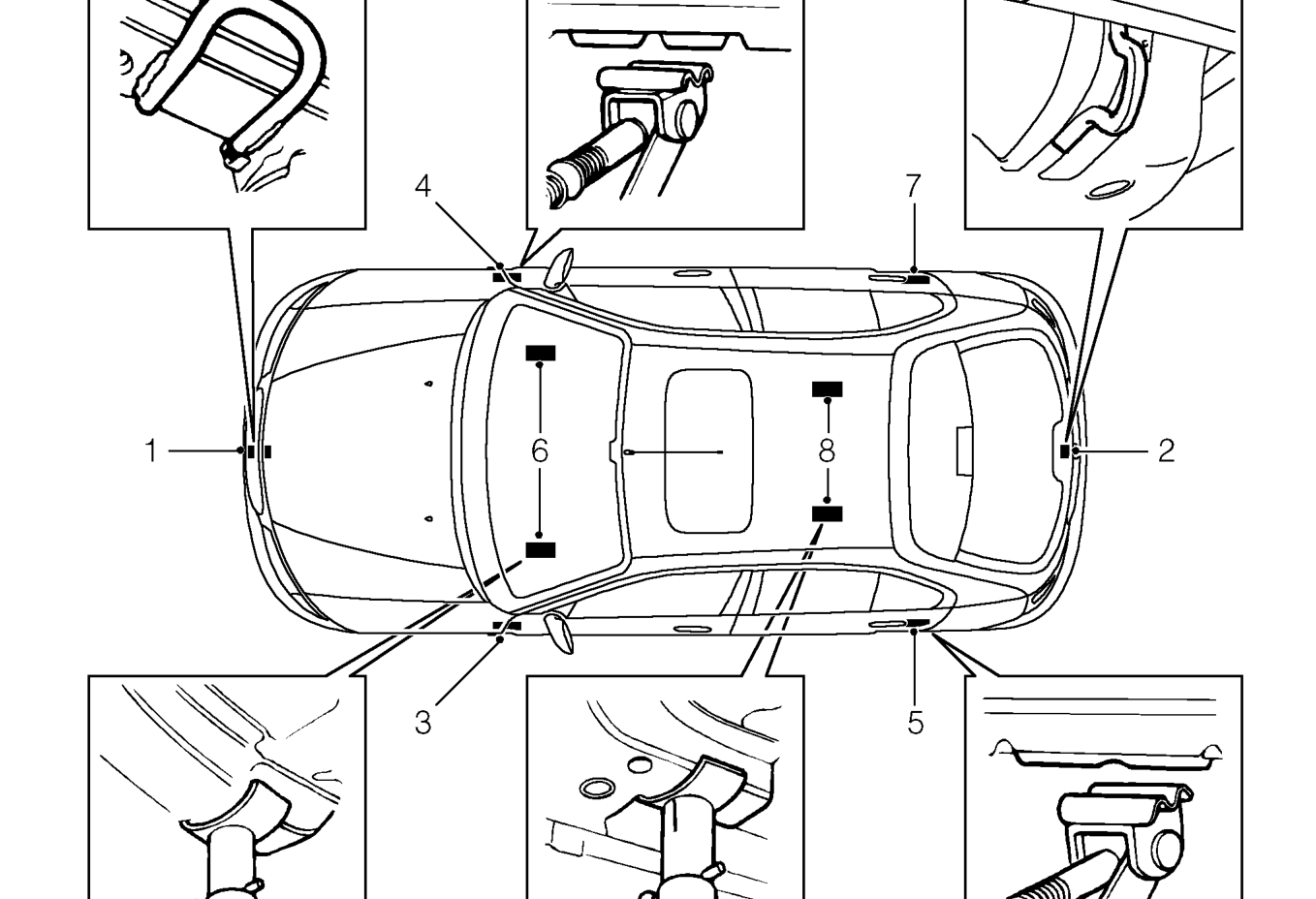

Jacking and support points

1. Front jacking point, lashing/towing eye - front
2. Rear jacking point, lashing/towing eye - rear
3. LH sill re-inforced bracket front
4. RH sill re-inforced bracket front

WARNING: In accordance with normal workshop practice and to avoid the possibility of damage or personal injury, work must not be carried out on or under a vehicle when it is supported solely on a jack. Place safety supports under the floor longitudinal members (3, 4, 5 and 7).

5. LH sill re-inforced bracket rear
6. Longitudinal members - front
7. RH sill re-inforced bracket rear
8. Longitudinal members - rear

WARNING: Do not position a jack, jack stand or wheel free support under the suspension attachment points or the rear suspension ’H’ frame.
