Rover 200 Body Repair Manual (1995-1999)06 · Panel repairs
06 · General

Sealing charts

Make
Rover
Model
200 Body Repair Manual
Year
1995–1999
Section
Sealing and corrosion protection › Sealing charts
Panel repairsSealing charts

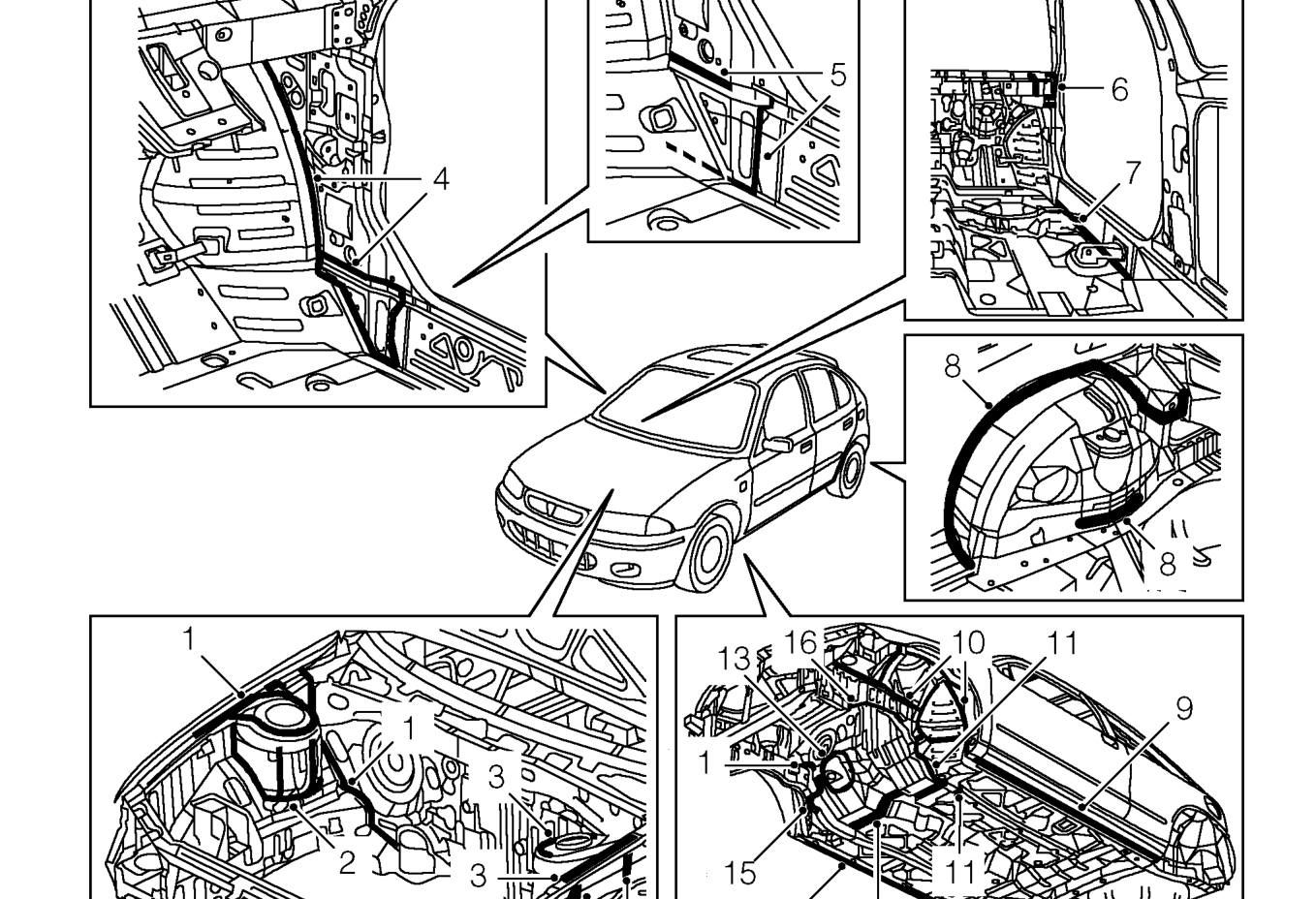

SEALING CHARTS

Sealing charts
  1. Seam sealer light
  2. Structural adhesive (RH only)
  3. Structural Adhesive
  4. Seam sealer light
  5. Structural adhesive
  6. Seam sealer light
  7. Seam sealer light
  8. Structural adhesive

All areas symmetrically opposite to those shown are also treated. See protection.

  1. Seam sealer light
  2. Seam sealer heavy
  3. Seam sealer heavy
  4. Seam sealer heavy
  5. Seam sealer light, structural adhesive
  6. Structural adhesive
  7. Seam sealer heavy
  8. Structural adhesive

INFORMATION, Sealing and corrosion
