Airbag Handling and Storage

Airbag Handling and Storage

• Do not try to disassemble the airbag assembly. It has no serviceable parts. Once an airbag has been deployed, it cannot be repaired or reused.
• Be careful that the airbag assembly receives no strong shocks; it could deploy.
• Special bolts are necessary for installing the airbag assembly. Do not use other bolts.

For temporary storage of the airbag assembly during service, observe the following precautions:

• Always keep components dry.

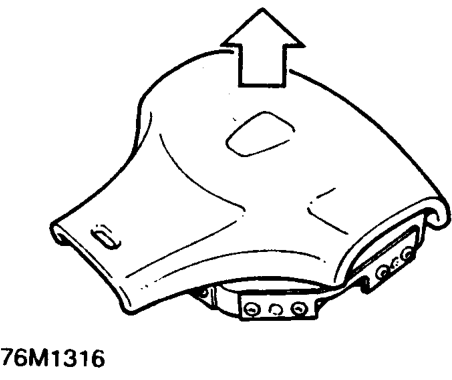

• Always carry the airbag module with the pad surface face up.
• Store the removed airbag assembly with the pad surface face up.
• Do not allow anything to rest on the airbag module.
• Place the airbag module in a designated storage area.
• If no designated storage area is available, then the boot of the vehicle should be used. Always lock the boot when a module is stored in it and inform the workshop supervisor.

WARNING: If the airbag is improperly stored face down, accidental deployment could propel the unit with enough force to cause serious injury.

• Store the removed airbag assembly on a secure flat surface away from any electrical equipment or high heat source (exceeding 85°C/185°F) and free of any oil, grease, detergent or water.

CAUTION: Improper handling or storage can internally damage the airbag assembly, making it inoperative. If you suspect the airbag assembly has been damaged, install a new unit and refer to the Deployment/Disposal Procedures for disposing of the damaged airbag.

Overnight storage

Airbag modules are classed as explosive articles and as such must be stored in an approved secure steel cabinet which has been registered by the local authority.
