Rover 200 Circuit Diagrams (1997 model year)29 · In-car entertainment
29 · General

In-car entertainment

Make
Rover
Model
200 Circuit Diagrams
Year
1997 model year
Section
In-car entertainment › In-car entertainment
In-car entertainmentIn-car entertainment

IN-CAR ENTERTAINMENT

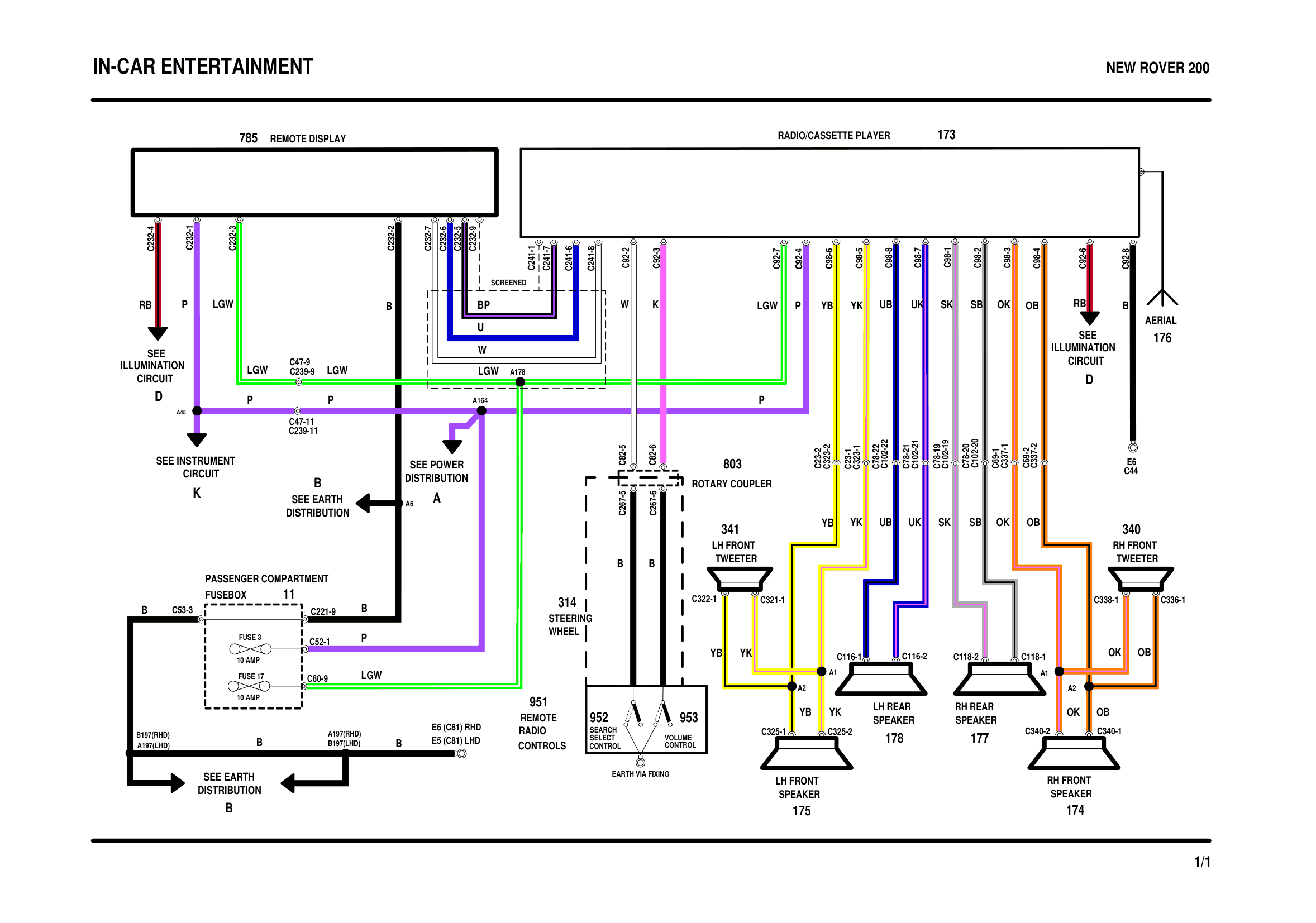

In-Car Entertainment circuit diagram
