Earth distribution

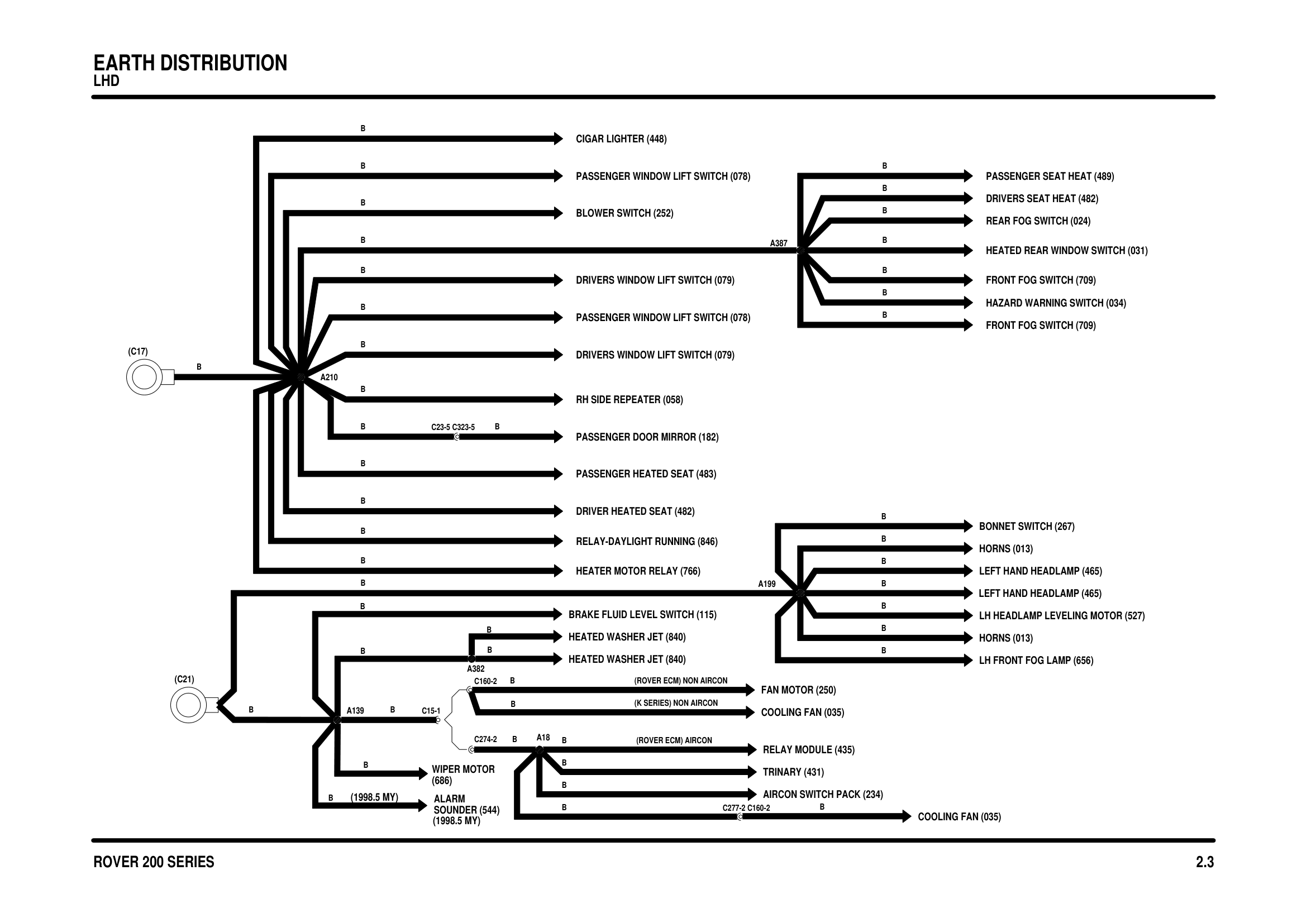

EARTH DISTRIBUTION

Components on this diagram

• AIRCON SWITCH PACK (234)
• ALARM SOUNDER (544)
• BLOWER SWITCH (252)
• BONNET SWITCH (267)
• BRAKE FLUID LEVEL SWITCH (115)
• CIGAR LIGHTER (448)
• COOLING FAN (035)
• DRIVER HEATED SEAT (482)
• DRIVERS SEAT HEAT (482)
• DRIVERS WINDOW LIFT SWITCH (079)
• FAN MOTOR (250)
• FRONT FOG SWITCH (709)
• HAZARD WARNING SWITCH (034)
• HEATED REAR WINDOW SWITCH (031)
• HEATED WASHER JET (840)
• HEATER MOTOR RELAY (766)
• HORNS (013)
• LEFT HAND HEADLAMP (465)
• LH FRONT FOG LAMP (656)
• LH HEADLAMP LEVELING MOTOR (527)
• PASSENGER DOOR MIRROR (182)
• PASSENGER HEATED SEAT (483)
• PASSENGER SEAT HEAT (489)
• PASSENGER WINDOW LIFT SWITCH (078)
• REAR FOG SWITCH (024)
• RELAY MODULE (435)
• RELAY-DAYLIGHT RUNNING (846)
• RH SIDE REPEATER (058)
• TRINARY (431)
• WIPER MOTOR (686)
