Workshop Manuals Factory service & repair Rover
Rover 200 Workshop Manual (1995-1999)30 · Wipers & washers
30 · Electrical

Windscreen wiper components (Wipers & washers)

Make
Rover
Model
200 Workshop Manual
Year
1995–1999
Section
Description and operation › Windscreen wiper components
Wipers & washersWindscreen wiper components

WINDSCREEN WIPER COMPONENTS

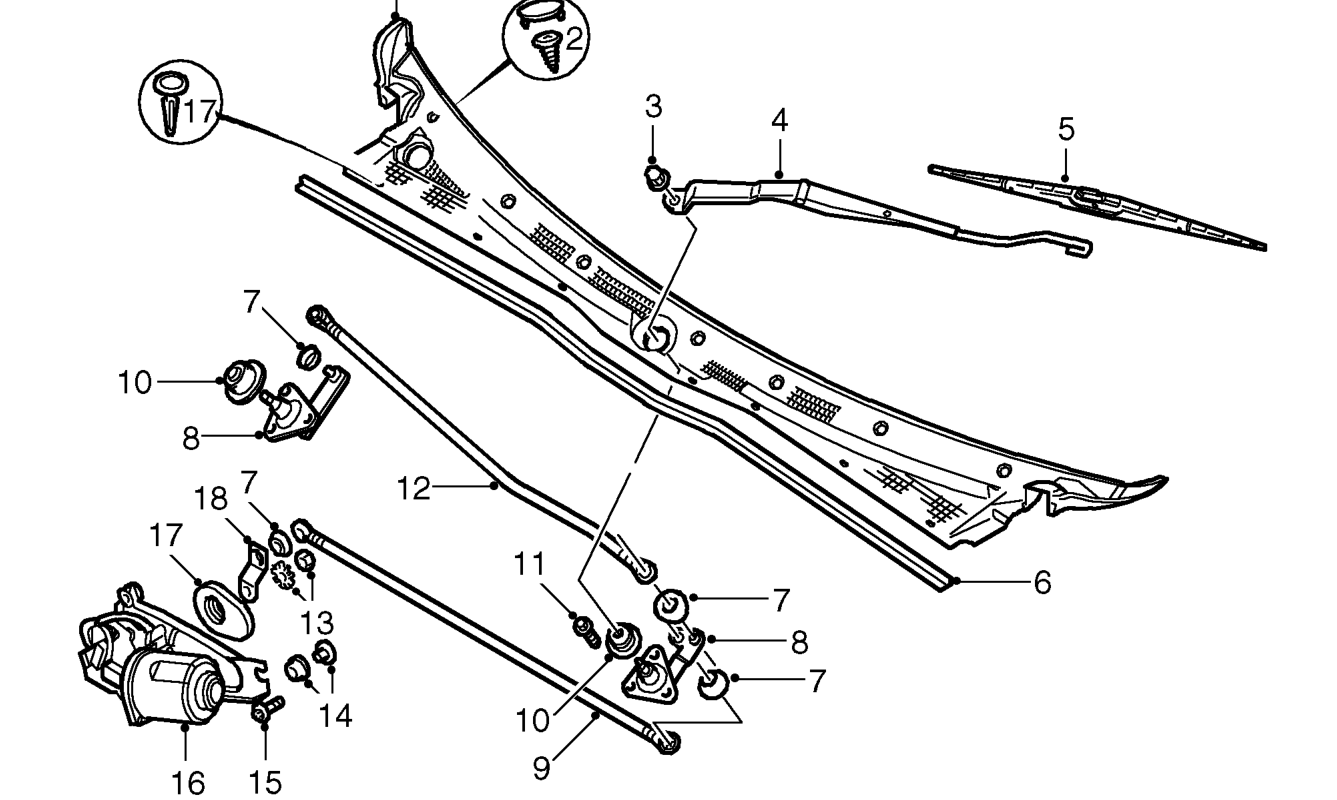

Windscreen wiper components
  1. Plenum air intake
  2. Retaining screw and cover
  3. Nut - windscreen wiper arm
  4. Arm - windscreen wiper
  5. Blade - windscreen wiper
  6. Seal - plenum intake
  7. Dust shield
  8. Wheelbox
  9. Operating rod
  10. Spindle cap
  11. Mounting bolt
  12. Connecting rod
  13. Nut and washer
  14. Ferrule and mounting rubber
  15. Mounting bolt
  16. Wiper motor
  17. Water shield
  18. Rotary link
