Rover 400 Body Repair Manual (1995-2000)03 · Information
03 · General

’T’ and ’L’ Series Engine

Make
Rover
Model
400 Body Repair Manual
Year
1995–2000
Section
Body dimensions › ’T’ and ’L’ Series Engine
Information’T’ and ’L’ Series Engine

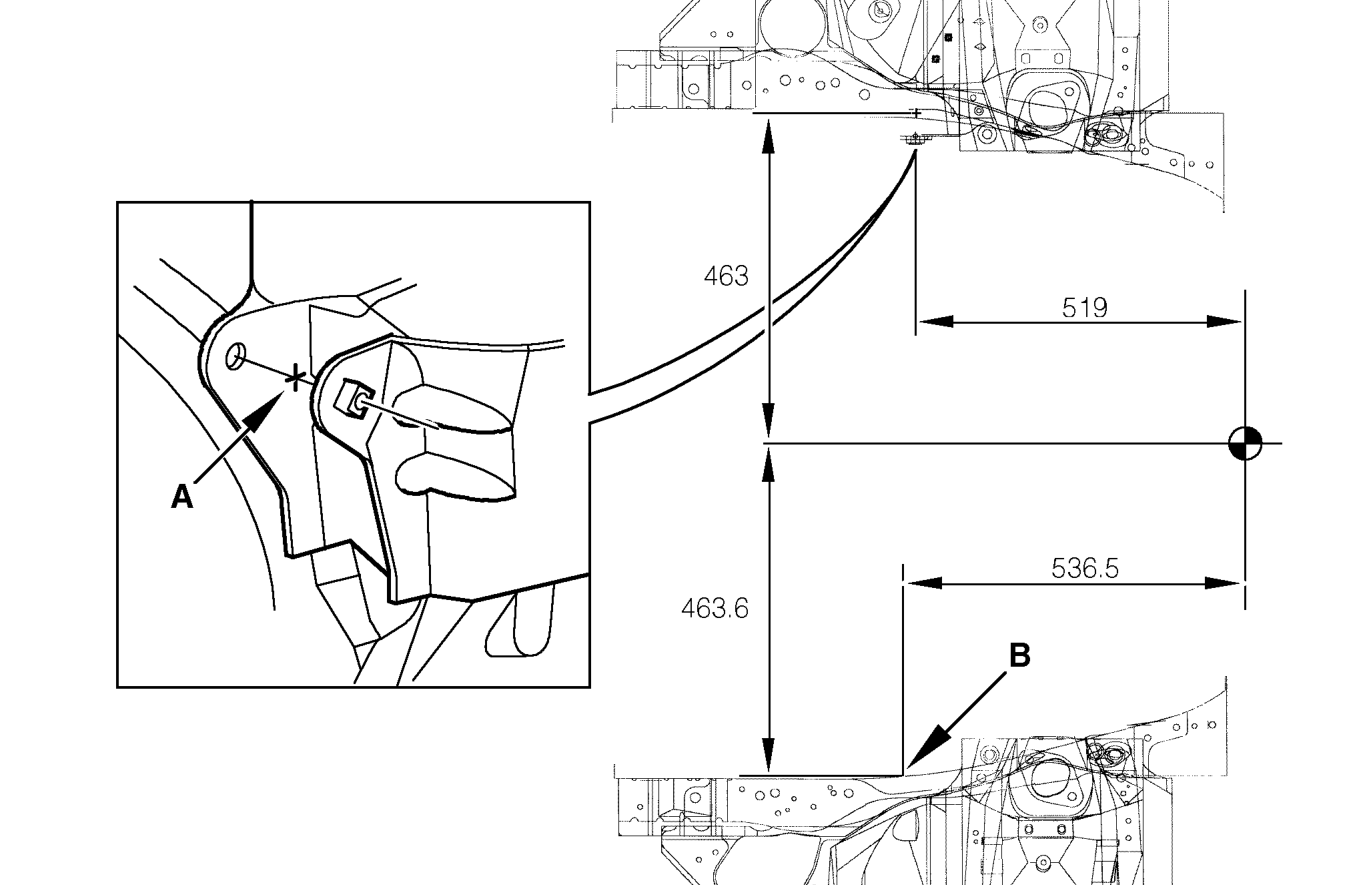

’T’ and ’L’ Series Engine

’t’ and ’l’ series engine

REF. DESCRIPTION

A RH engine mounting datum point B LH engine mounting datum point
