Rover 400 Circuit Diagrams (1995 model year)07 · Power distribution
07 · General

Power distribution

Make
Rover
Model
400 Circuit Diagrams
Year
1995 model year
Section
Power distribution › Power distribution
Power distributionPower distribution

POWER DISTRIBUTION

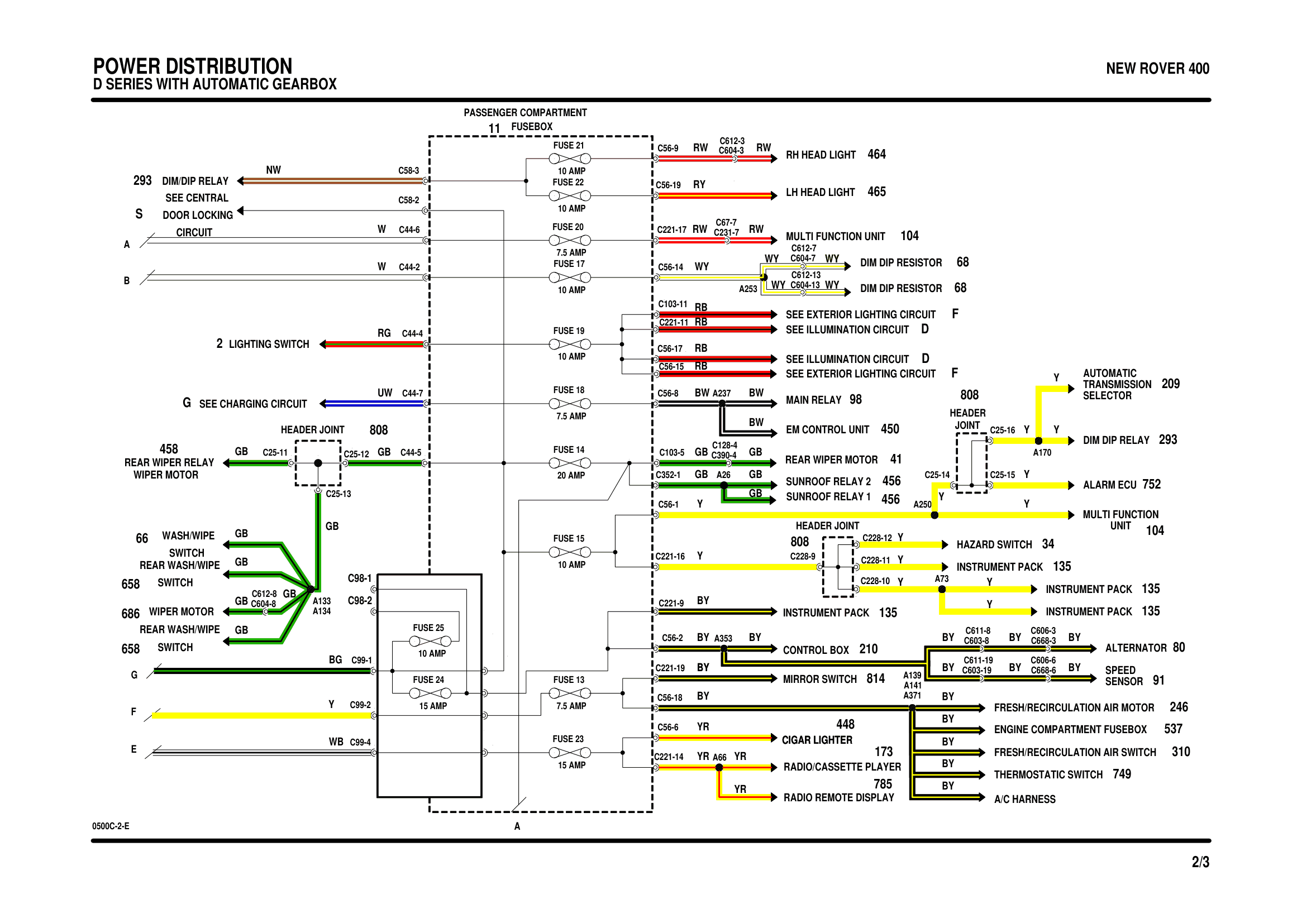

Power Distribution circuit diagram
