Rover 400 Circuit Diagrams (1997.5 model year on)21 · Exterior lamps
21 · General

Exterior lamps

Make
Rover
Model
400 Circuit Diagrams
Year
1997/5 model year on
Section
Exterior lamps › Exterior lamps
Exterior lampsExterior lamps

EXTERIOR LAMPS

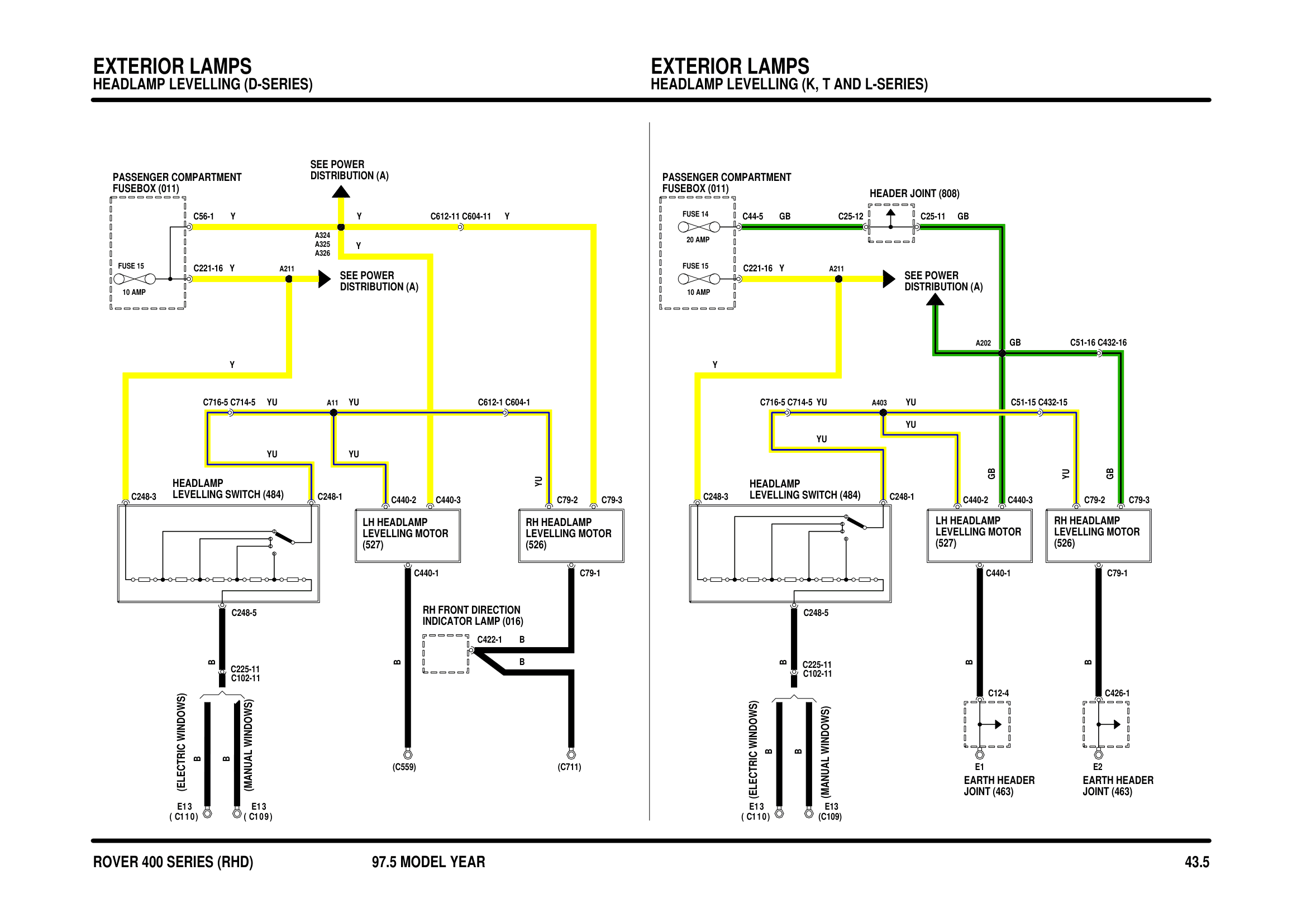

Exterior Lamps circuit diagram

Components on this diagram

  • EARTH HEADER JOINT (463)
  • HEADER JOINT (808)
  • HEADLAMP LEVELLING SWITCH (484)
  • LEVELLING MOTOR (526)
  • LEVELLING MOTOR (527)
  • PASSENGER COMPARTMENT FUSEBOX (011)
  • RH FRONT DIRECTION INDICATOR LAMP (016)
