Female
- Make
- Rover
- Model
- 400 Electrical Library
- Year
- 1998 model year on
- Section
- C0014 › Female

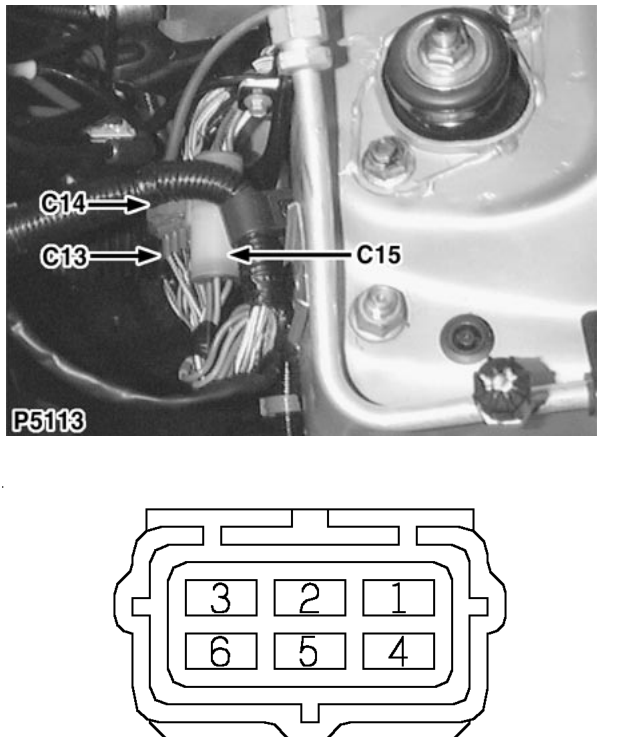

ConnectorsFemale
Main harness to engine harness
Female
BLACK
Rear LH side of engine compartment
| Cav | Col | CCT |
|---|---|---|
| 1 | RB | 34 |
| 2 | GW | 34 |
| 3 | BW | 34 |
| 4 | LGR | 34 |
| 5 | SU | 34 |
| 6 | UW | 34 |
