Female
- Make
- Rover
- Model
- 400 Electrical Library
- Year
- 1998 model year on
- Section

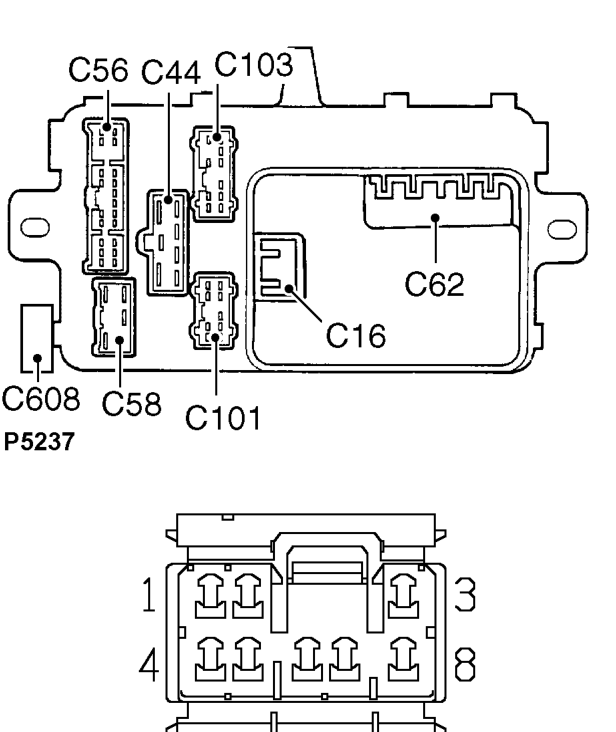

- C0016 › Female
ConnectorsFemale
Multi-function unit
Female
WHITE
Behind passenger compartment fusebox cover
| Cav | Col | CCT |
|---|---|---|
| 1 | B | ALL |
| 2 | Y | 69 |
| 2 | Y | 70 |
| 2 | Y | 79 |
| 2 | GY | 80 |
| 3 | WG | ALL |
| 5 | RY | ALL |
| 6 | RW | ALL |
| 7 | UW | ALL |
| 8 | UR | ALL |
