Female
- Make
- Rover
- Model
- 400 Electrical Library
- Year
- 1998 model year on
- Section
- C0018 › Female

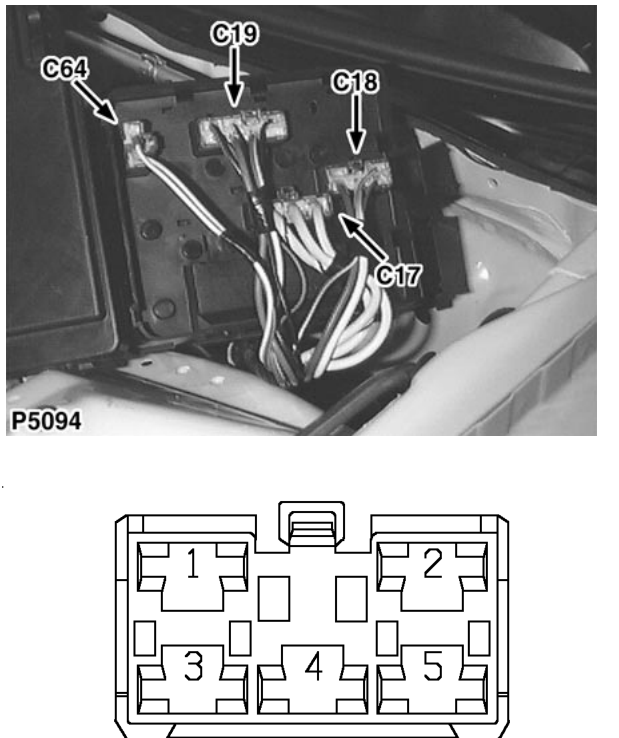

ConnectorsFemale
Fusebox (engine compartment)
Female
BROWN
Rear of engine compartment
| Cav | Col | CCT |
|---|---|---|
| 1 | WB | 70 |
| 1 | WU | 80 |
| 3 | YW | 70 |
| 3 | PK | 80 |
| 4 | NW | 20 |
| 4 | NW | 34 |
| 4 | W | 70 |
| 5 | P | 12 |
| 5 | P | 20 |
| 5 | P | 34 |
