Female

Make

Rover

Model

400 Electrical Library

Year

1998 model year on

Section

C0019 › Female

ConnectorsFemale

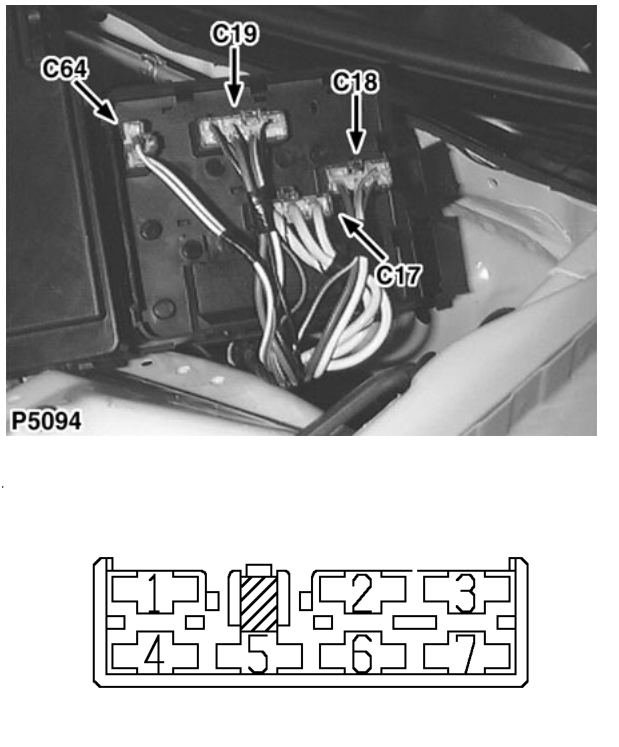

Fusebox (engine compartment)

Female

BROWN

Rear of engine compartment

Cav	Col	CCT
1	BU	70
1	BY	80
2	B	21
2	B	24
2	B	70
3	BG	70
3	UY	80
4	Y	12
4	G	70
5	UW	70
5	UW	80

Cav	Col	CCT
6	UP	16
6	BY	19
6	UP	20
6	UP	34
6	BR	70
7	UY	70
7	UY	80
