Female

Make

Rover

Model

400 Electrical Library

Year

1998 model year on

Section

C0020 › Female

ConnectorsFemale

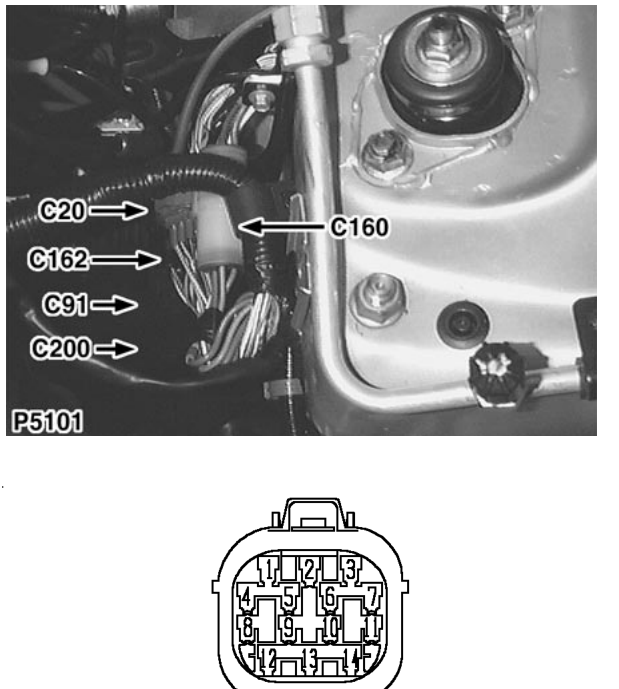

Engine harness to main harness

Female

GREY

Rear LH side of engine compartment

Cav	Col	CCT
1	O	80
2	U	80
3	BG	80
4	PK	16
4	G	19
5	UR	11
5	Y	12
6	GO	ALL
7	YG	80
8	YR	80
9	K	80

Cav	Col	CCT
10	GB	80
11	WU	80
12	GY	80
13	GK	80
14	BW	80
