Male
- Make
- Rover
- Model
- 400 Electrical Library
- Year
- 1998 model year on
- Section
- C0022 › Male

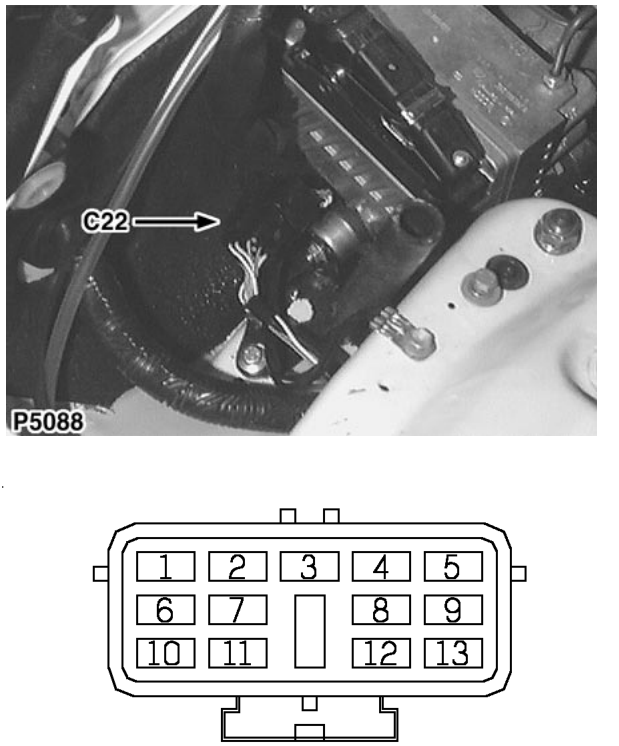

ConnectorsMale
Main harness to ABS harness
Male
BLACK
Rear LH side of engine compartment
| Cav | Col | CCT |
|---|---|---|
| 1 | GK | 9 |
| 2 | G | 9 |
| 3 | G | 9 |
| 4 | W | 9 |
| 5 | W | 9 |
| 9 | UR | 9 |
| 10 | GW | 9 |
| 11 | K | 9 |
| 13 | LGR | 36 |
| 13 | LGR | 37 |
