Female
- Make
- Rover
- Model
- 400 Electrical Library
- Year
- 1998 model year on
- Section
- C0029 › Female
ConnectorsFemale

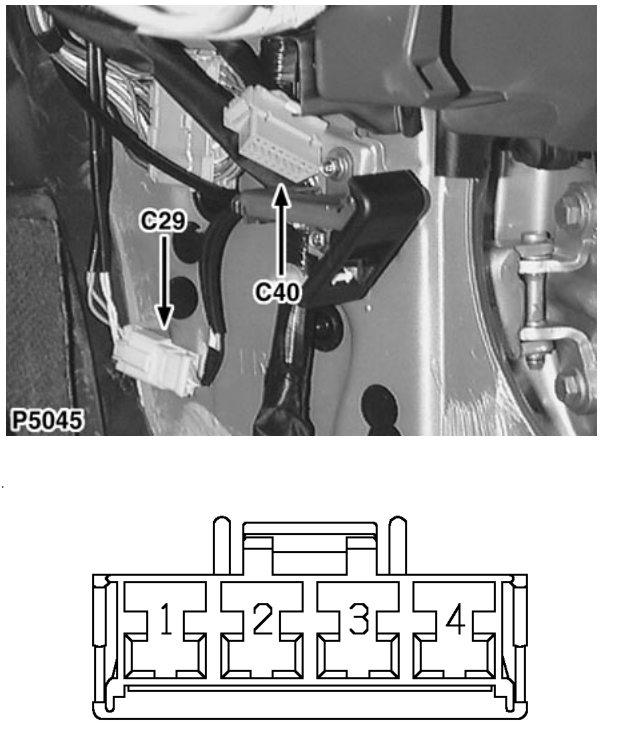

Main harness to body harness - RHD
Female
ORANGE
Under RH side of fascia
| Cav | Col | CCT |
|---|---|---|
| 1 | W | 9 |
| 1 | GY | 9 |
| 2 | UY | 9 |
| 2 | W | 9 |
| 3 | G | 9 |
| 3 | P | 9 |
| 4 | G | 9 |
| 4 | S | 9 |
