Female

Make

Rover

Model

400 Electrical Library

Year

1998 model year on

Section

C0037 › Female

ConnectorsFemale

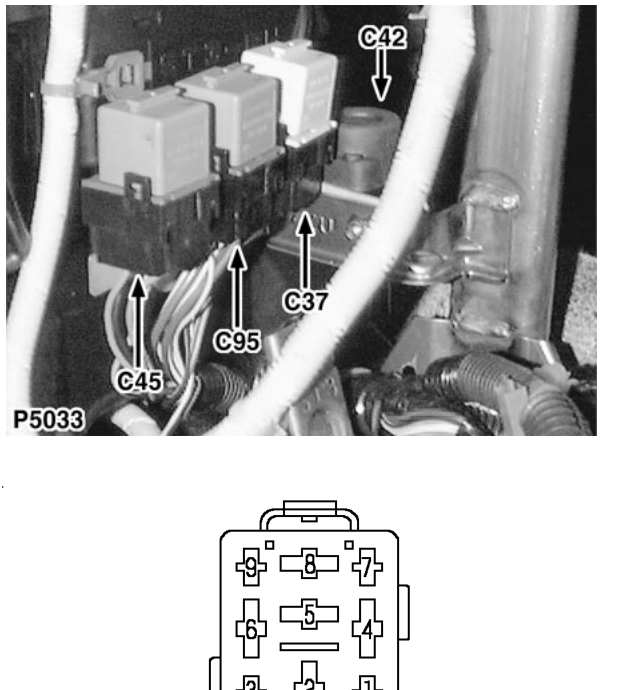

Front fog lamp relay

Female

YELLOW

Behind centre console

Cav	Col	CCT
2	WR	30
2	UB	69
2	UB	70
4	B	30
4	RY	69
4	RY	70
6	Y	30
6	B	69
6	B	70
8	UR	30
8	WR	69
8	WR	70

05 General
