Female
- Make
- Rover
- Model
- 400 Electrical Library
- Year
- 1998 model year on
- Section
- C0039 › Female
ConnectorsFemale

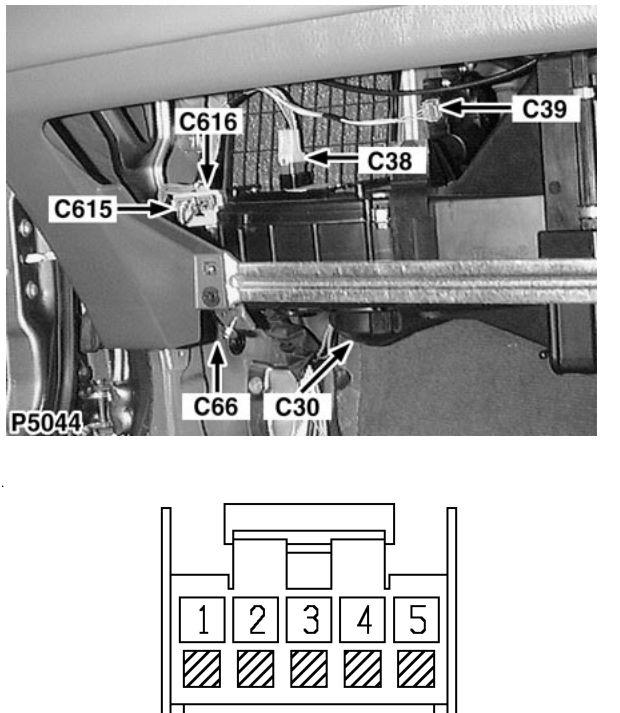

Fresh/recirculation air mode motor
Female
GREEN
Behind glovebox
| Cav | Col | CCT |
|---|---|---|
| 1 | GR | 69 |
| 1 | GW | 70 |
| 1 | GR | 79 |
| 1 | GW | 80 |
| 3 | GW | 69 |
| 3 | GR | 70 |
| 3 | GW | 79 |
| 3 | GR | 80 |
| 5 | BU | 69 |
| 5 | BU | 70 |
| 5 | BY | 79 |
| 5 | BY | 80 |
