Female
- Make
- Rover
- Model
- 400 Electrical Library
- Year
- 1998 model year on
- Section
- C0044 › Female
ConnectorsFemale

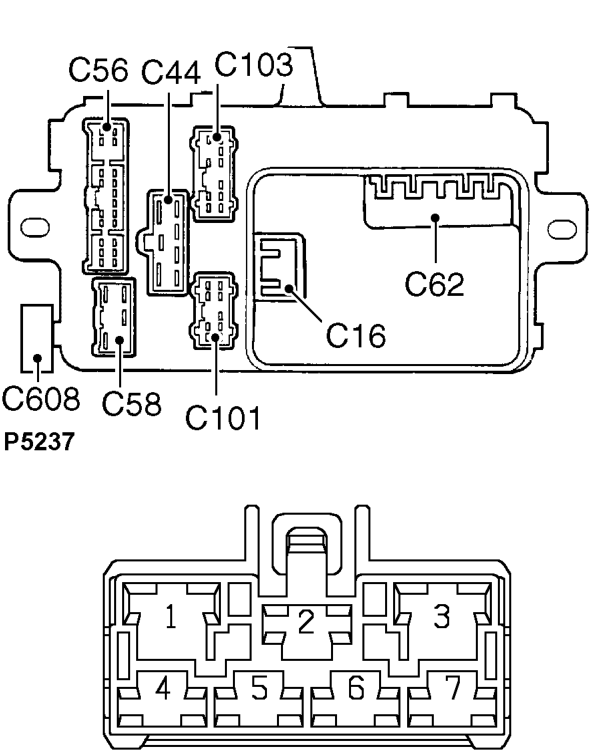

Passenger compartment fusebox
Female
GREEN
Behind passenger compartment fusebox
| Cav | Col | CCT |
|---|---|---|
| 1 | B | ALL |
| 2 | RU | 40 |
| 3 | WR | ALL |
| 4 | RG | ALL |
| 5 | GB | ALL |
| 6 | W | ALL |
| 7 | UW | 69 |
| 7 | UW | 70 |
| 7 | BW | 79 |
| 7 | BW | 80 |
