Female
- Make
- Rover
- Model
- 400 Electrical Library
- Year
- 1998 model year on
- Section
- C0048 › Female
ConnectorsFemale

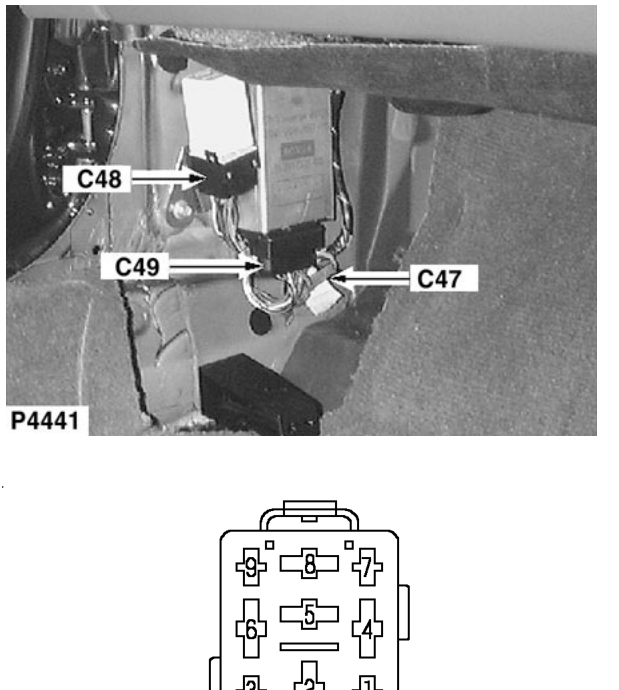

Cruise relay
Female
YELLOW
Passenger’s footwell
| Cav | Col | CCT |
|---|---|---|
| 1 | LGR | 21 |
| 2 | GK | 21 |
| 3 | YB | 21 |
| 4 | UO | 21 |
| 5 | B | 21 |
| 6 | GR | ALL |
| 7 | RLG | 21 |
| 8 | W | 21 |
| 9 | BY | 21 |
